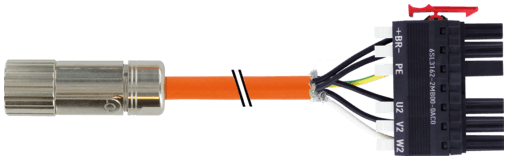

7000-PS412-8612500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  5224 g
• Series
  Connector Systems
• Locking of ports
  Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing
• Wire isolation
  TPM (bk num, gnye)
• Cable length
  25 m
• Rated surge voltage
  6.0 kV
• Diameter (core)
  4× 2.5 + 2× 1.5 mm²
• Torsion stress
  ±30°/m
• Operating current per contact
  Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²)
• Pollution Degree
  3
• Shield
  yes
• Locking material
  Brass, nickel plated
• Approval (cable)
  UL (AWM-Style 2570/10492), CSA
• Jacket Color
  orange
• Material
  Zinc die casting, nickel-plated
• C-track properties
  0.1 Mio.
• Material (jacket)
  PVC (UL/CSA) (=MC500)
• suitable for corrugated tube (internal Ø)
  without
• Temperature range
  -25...+85 °C, depending on cable quality
• Bend radius (fixed)
  5× outer Ø
Compression gland
M23 (SW27)
Bend radius (moving)
18× outer Ø
Form
PS412
No./diameter of wires
(4G1.5 + (2× 1.5)C)-C
Temperature range (fixed)
-40...+80 °C
Operating voltage
max. 630 V AC/DC
Outer Ø
10.4 mm ±5%
Temperature range (mobile)
-20...+60 °C
Material group
IEC 60664-1, category I
Cable number
861
Product article number of manufacturer
7000-PS412-8612500
