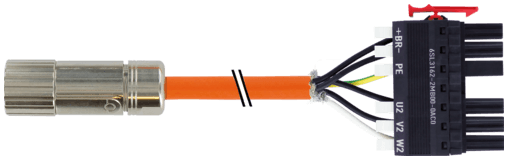

7000-PS411-8612300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  4816 g
• Series
  Connector Systems
• Rated surge voltage
  4 kV (PIN 1/2/3/6); 2 kV (PIN 4/5)
• Pollution Degree
  3
• Jacket Color
  orange
• Material group
  IEC 60664-1, category I
• Wire isolation
  TPM (bk num, gnye)
• Material (gasket)
  FKM
• Approval (cable)
  UL (AWM-Style 2570/10492), CSA
• Material
  PUR
• Protection
  IP65 and IP67 when plugged and screwed down (EN 60529)
• No./diameter of wires
  (4G1.5 + (2× 1.5)C)-C
• Temperature range
  -25...+85 °C, depending on cable quality
• Bend radius (fixed)
  5× outer Ø
• Operating current per contact
  Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²)
• C-track properties
  0.1 Mio.
• Locking of ports
  Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing
• Cable number
  861
• Temperature range (mobile)
  -20...+60 °C
• Material (jacket)
  PVC (UL/CSA) (=MC500)
Cable length
23 m
Locking material
Brass, nickel plated
Torsion stress
±30°/m
Form
PS411
suitable for corrugated tube (internal Ø)
16 mm; 23 mm
Compression gland
M23 (SW27)
Outer Ø
10.4 mm ±5%
Shield
yes
Product article number of manufacturer
7000-PS411-8612300
Diameter (core)
4× 2.5 + 2× 1.5 mm²
Operating voltage
600 V AC/DC (PIN 1/2/3/6); 250 V AC/DC (PIN 4/5)
Temperature range (fixed)
-40...+80 °C
Bend radius (moving)
18× outer Ø
