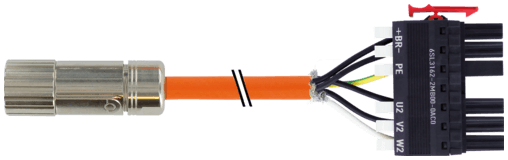

7000-PS411-8331500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  4953 g
• Series
  Connector Systems
• Locking of ports
  Screw thread (M23×1 mm) recommended torque 2.0 Nm, self-securing
• Compression gland
  M23 (SW27)
• Resistor (core)
  max. 13.3 Ω/km (1.5 mm²), max. 7.98 Ω/km (2.5 mm²); (20 °C)
• Shield
  yes
• thermal resistance
  flame retardant UL 1581 VW1 / CSA FT1
• Bend radius (fixed)
  4× outer-Ø
• Material (gasket)
  FKM
• Material (wire isolation)
  PP
• optical shield cover
  min. 85%
• Color (jacket)
  orange
• Torsion stress
  ±30°/m
• Test voltage
  4.0 kV
• Material group
  IEC 60664-1, category I
• Cable identification
  833
• Single wire Ø (core)
  0.15 mm
• Form
  PS411
• Wire isolation
  TPM (bk num, gnye)
• Diameter (core)
  (4G2.5 + (2× 1.5)C)-C
Jacket Color
orange
Product article number of manufacturer
7000-PS411-8331500
suitable for corrugated tube (internal Ø)
16 mm; 23 mm
Material (wire)
Cu wire, bare
Operating voltage
600 V AC/DC (PIN 1/2/3/6); 250 V AC/DC (PIN 4/5)
Locking material
Brass, nickel plated
Outer Ø
13.4 mm ±5%
Shield (Type)
Copper braid
Temperature range (mobile)
-35...+70 °C
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
Rated surge voltage
4 kV (PIN 1/2/3/6); 2 kV (PIN 4/5)
Temperature range
-25...+85 °C, depending on cable quality
Approval (cable)
cURus (AWM-Style 21223/10492)
Material (jacket)
PUR
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Cable length
15 m
Operating current per contact
Power cores: 12 A (1.5 mm²), 15 A (2.5 mm²); brake cores: 5 A (1.5 mm²)
C-track properties
10 Mio.
Cable number
833
Color/numbering of wires
bk, wh (1.5 mm²); bk, gnye longitudinally striped (2.5 mm²)
Nominal voltage
600/1000 V AC
Temperature range (fixed)
-50...+80 °C
Material
PUR
Pollution Degree
3
Wire-Ø incl. isolation
2.4 ±5% (1.5 mm²); 3.1 ±5% (2.5 mm²)
Outer-Ø (jacket)
13.4 mm ±5%
Bend radius (moving)
7.5× outer Ø
No./diameter of wires
(4G2.5 + (2× 1.5)C)-C
