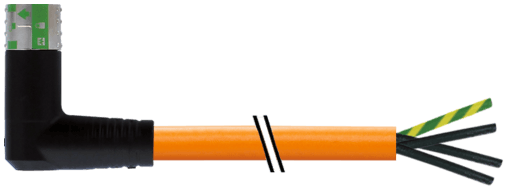

7000-P8031-P132000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  3660 g
• Series
  Connector Systems
• Material (jacket)
  PUR
• Travel speed (C-track)
  max. 3 m/s
• Torsion stress
  ±15°/m
• Rated surge voltage
  4.0 kV
• Mounting method
  inserted, tightened
• Cable number
  P13
• Material (wire)
  Cu wire, bare
• Material group
  IEC 60664-1, category I
• Temperature range
  -25...+80 °C, depending on cable quality
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Temperature range (mobile)
  -35...+70 °C
• Operating voltage
  max. 600 V AC
• Outer Ø
  10.6 mm ±5%
• thermal resistance
  flame retardant
• Color (jacket)
  orange
• Locking of ports
  Quick connection, 1/4 turn
• Protection
  IP67 inserted and tightened (EN 60529)
• Diameter (core)
  4× 2.5 mm²
optical shield cover
approx. 85%
Acceleration (C-track)
max. 5 m/s²
Operating current per contact
max. 16 A
Material
Flame retardant plastic acc. to (UL 94)
No./diameter of wires
4× 2.5 mm²
Shield (Type)
Copper braid
Bend radius (fixed)
4× outer-Ø
LED display
no
Stripping length (jacket)
30 mm
Cable weight [g/m]
149,6 g
Test voltage
4000 V
Form
P8031
Material (contact)
Copper alloy
C-track properties
5 Mio.
Jacket Color
orange
Cable length
20 m
Product article number of manufacturer
7000-P8031-P132000
Configuration
fully used
Material (contact surface)
Ag
Shield
yes
Bend radius (moving)
7.5× outer Ø
Mating cycles
≥ 500
Pollution Degree
3
Cable identification
P13
Nominal voltage
1000 V AC
No. of poles
4
Material (contact carrier)
PA
Wire isolation
TPM (bk num, gnye)
Temperature range (fixed)
-50...+80 °C
Outer-Ø (jacket)
10.6 mm ±5%
