7000-C0101-6560000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  5974 g
• Series
  Connector Systems
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Diameter (core)
  3× 0.75 mm²
• Shore hardness (jacket)
  58 ±3 D
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Product article number of manufacturer
  7000-C0101-6560000
• Cable identification
  656
• Stranding combination
  3 wires twisted
• Outer-Ø (jacket)
  5.2 mm ±5%
• Bend radius (fixed)
  5× outer Ø
• Shield
  no
• Material (jacket)
  PUR
• thermal resistance
  flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
• Torsion speed
  35 cycles/min
• Cable weight [g/m]
  48,4 g
• AWG
  similar to AWG 18
• Nominal voltage
  300 V AC
• No. of torsion cycles
  max. 1 Mio. (25 °C)
Single wire Ø (core)
0.15 mm
Wire-Ø incl. isolation
1.7 mm ±5%
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 5 m/s²

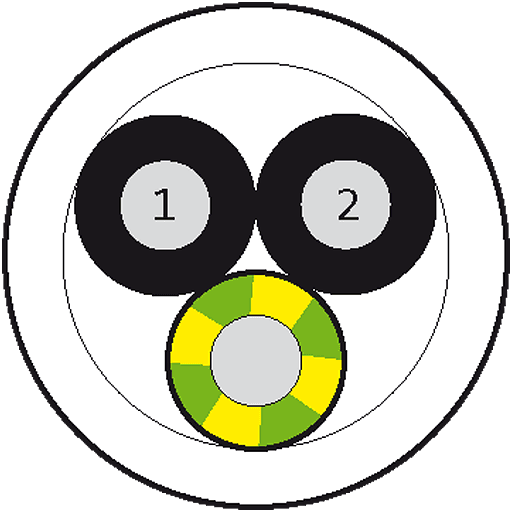

Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Material (wire isolation)
PP
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Cable Type
5 (PUR schweißfunkenbeständig)
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
Bend radius (moving)
10× outer Ø
Color/numbering of wires
bk numbered, gnye longitudinally striped
Test voltage
2500 V AC
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Color (jacket)
black
Travel speed (C-track)
max. 3.3 m/s
Material (wire)
Cu wire, bare
Shore hardness (wire isolation)
58 ±3 D
Current load capacity
to DIN VDE 0298-4
Torsion stress
±360°/m
