7000-C0101-6500000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  3542 g
• Series
  Connector Systems
• Single wire Ø (core)
  0.1 mm
• Shore hardness (wire isolation)
  74 ±3 D
• Shore hardness (jacket)
  58 ±3 D
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• C-track properties
  10 Mio.
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• Color (jacket)
  black
• Temperature range (fixed)
  -40...+80 °C
• Outer Ø
  4.3 mm ±5%
• Material (wire isolation)
  PP
• thermal resistance
  flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
• Bend radius (moving)
  10× outer Ø
• Wire isolation
  PP (br, bl, bk)
• Construction (core)
  32× 0.1 mm (multi-strand wire class 6)
• Shield
  no
• Current load capacity
  to DIN VDE 0298-4
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Wire-Ø incl. isolation
  1.25 mm ±5%
Jacket Color
black
Acceleration (C-track)
max. 5 m/s²
Cable Type
5 (PUR schweißfunkenbeständig)
AWG
similar to AWG 24
Material (jacket)
PUR
Temperature range (mobile)
-25...+80 °C
Torsion speed
35 cycles/min
Material (wire)
Cu wire, bare
Color/numbering of wires
br, bk, bl
Nominal voltage
300 V AC
Torsion stress
±360°/m
Cable identification
650
Resistor (core)
max. 79 Ω/km (20 °C)

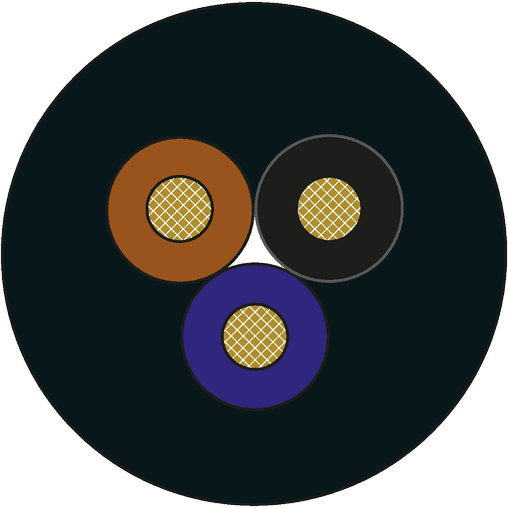

Stranding combination
3 wires twisted
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Travel speed (C-track)
max. 3.3 m/s
No./diameter of wires
3× 0.25 mm²
Diameter (core)
3× 0.25 mm²
Outer-Ø (jacket)
4.3 mm ±5%
Bend radius (fixed)
5× outer Ø
Product article number of manufacturer
7000-C0101-6500000
Cable weight [g/m]
26,4 g
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
Test voltage
2500 V AC
No. of torsion cycles
max. 1 Mio. (25 °C)
