7000-C0101-3390000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  4722 g
• Series
  Connector Systems
• Cable number
  339
• Material (wire isolation)
  PP
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Temperature range (mobile)
  -25...+105 °C
• Product article number of manufacturer
  7000-C0101-3390000
• Approval (cable)
  UL (AWM-Style 22126/11558), CE conform
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• Outer-Ø (jacket)
  5.0 mm ±5%
• Bend radius (fixed)
  5× outer Ø
• C-track properties
  4 Mio.
• Wire-Ø incl. isolation
  1.27m ±5%
• Jacket Color
  pastel blue
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Resistor (core)
  max. 58 Ω/km (20 °C)
• Shore hardness (jacket)
  47 ±5 D
• Temperature range (fixed)
  -40...+105 °C
• Wire isolation
  PP (br, wh, bl, bk, gnye)
• Single wire Ø (core)
  0.1 mm
Nominal voltage
300 V AC
Travel speed (C-track)
max. 3 m/s
Cable weight [g/m]
35,2 g
AWG
similar to AWG 22
Shield
no
Bend radius (moving)
10× outer Ø
Material (wire)
Cu wire, bare
Shore hardness (wire isolation)
64 ±3 D
Color (jacket)
pastel blue
Acceleration (C-track)
max. 10 m/s²
No./diameter of wires
5× 0.34 mm²
Color/numbering of wires
br, bk, bl, wh, gnye longitudinally striped
Test voltage
3000 V AC
Torsion stress
±180°/m
Outer Ø
5.0 mm ±5%

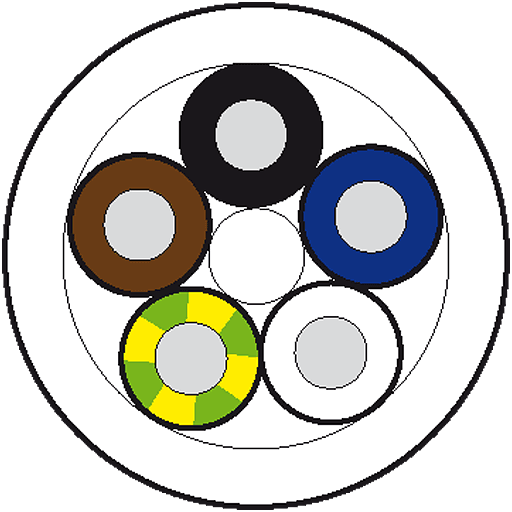

Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Stranding combination
5 wires twisted around central filler
Current load capacity
to DIN VDE 0298-4
Torsion speed
35 cycles/min
Cable identification
339
Diameter (core)
5× 0.34 mm²
Material (jacket)
TPE-S (laser-markable)
No. of bending cycles (C-track)
max. 4 Mio. (25 °C)
