7000-C0101-2270000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  8055 g
• Series
  Connector Systems
• Cable weight [g/m]
  80,19 g
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Material (jacket)
  PUR/PVC
• Current load capacity
  to DIN VDE 0298-4
• Product article number of manufacturer
  7000-C0101-2270000
• Cable identification
  227
• Shore hardness (wire isolation)
  43 ±5 D
• Shore hardness (jacket)
  80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket)
• Test voltage
  2000 V AC
• Approval (cable)
  UL (AWM-Style 20549/1731), CSA; CE conform
• Diameter (core)
  4× 0.75 mm²
• Color (jacket)
  gray
• No. of bending cycles (C-track)
  max. 2 Mio. (25 °C)
• Wire isolation
  PVC (bk num, gnye)
• AWG
  similar to AWG 18
• Outer-Ø (jacket)
  7.0 mm ±5%
• Bend radius (moving)
  15× outer Ø
• Outer Ø
  7.0 mm ±5%
Shield
no
Bend radius (fixed)
10× outer Ø
C-track properties
2 Mio.

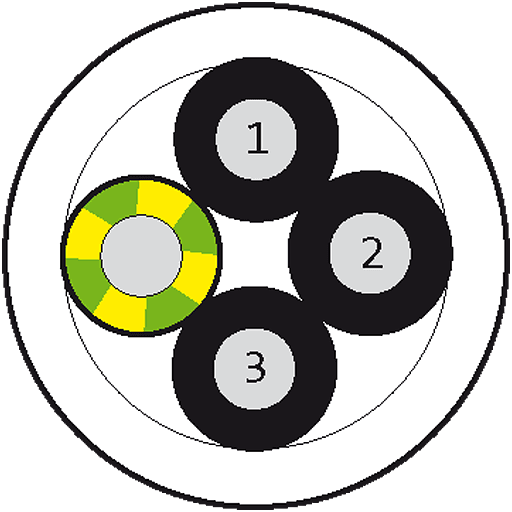

Color/numbering of wires
bk numbered, gnye longitudinally striped
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Nominal voltage
UL 300 V AC
Acceleration (C-track)
max. 5 m/s²
No./diameter of wires
4× 0.75 mm²
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Wire-Ø incl. isolation
1.8 mm ±5%
Jacket Color
gray
Travel speed (C-track)
max. 3.3 m/s
Material (wire)
Cu wire, bare
Material (wire isolation)
PVC
chemical resistance
good resistance to oil, gasoline and chemicals
Temperature range (fixed)
-30...+80 °C
Cable Type
2 (PUR/PVC)
Single wire Ø (core)
0.15 mm
Stranding combination
4 wires twisted
Temperature range (mobile)
-5...+80 °C
