7000-C0101-2180000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  8805 g
• Series
  Connector Systems
• Approval (cable)
  CE conform
• Cable weight [g/m]
  92,4 g
• Color (jacket)
  gray
• Product article number of manufacturer
  7000-C0101-2180000
• Material (wire isolation)
  PVC
• Shore hardness (jacket)
  80 ±5 A
• Bend radius (moving)
  10× outer Ø
• Single wire Ø (core)
  0.2 mm
• AWG
  similar to AWG 18
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Cable identification
  218
• Material (jacket)
  PVC
• Temperature range (mobile)
  -5...+70 °C
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Bend radius (fixed)
  5× outer Ø
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• Shore hardness (wire isolation)
  43 ±5 D
Outer-Ø (jacket)
7.0 mm ±5%
Material (wire)
Cu wire, bare
Wire-Ø incl. isolation
1.8 mm ±5%
Nominal voltage
300/500 V AC
Diameter (core)
5× 0.75 mm²
Shield
no
Temperature range (fixed)
-30...+70 °C
Resistor (core)
max. 26 Ω/km (20 °C)

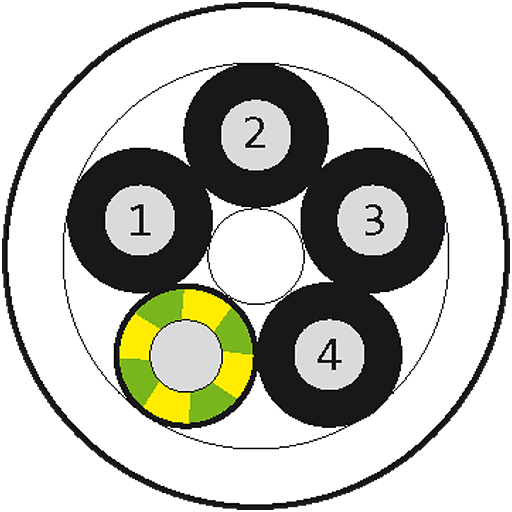

Stranding combination
5 wires twisted around central filler
Current load capacity
to DIN VDE 0298-4
Cable Type
1 (PVC)
Color/numbering of wires
bk numbered, gnye longitudinally striped
Test voltage
3000 V AC
