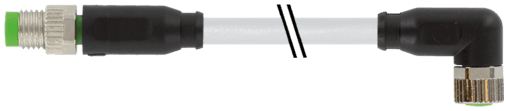

7000-89531-2010030 Murr Elektronik Cable Assemblies

Product Details

• Weight
  28 g
• Series
  Connector Systems
• Locking of ports
  Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
• Diameter (core)
  4× 0.34 mm²
• Material (jacket)
  PVC
• Product article number of manufacturer
  7000-89531-2010030
• Operating current per contact
  max. 4 A
• Temperature range
  -25...+85 °C, depending on cable quality
• Material (wire)
  Cu wire, bare
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Bend radius (fixed)
  10× outer Ø
• Rated surge voltage
  1.5 kV
• Material (contact surface)
  Au
• Resistor (core)
  max. 57 Ω/km (20 °C)
• Wire-Ø incl. isolation
  1.25 mm ±5%
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Temperature range (mobile)
  -5...+80 °C
• Material group
  IEC 60664-1, category I
• suitable for corrugated tube (internal Ø)
  6.5 mm
• Standards
  DIN EN 61076-2-104 (M8)
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Stranding combination
4 wires twisted
Nominal voltage
300 V AC
Coding
A-coded
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Cable Type
1 (PVC)
AWG
similar to AWG 22
Shore hardness (jacket)
85 ±5 A
Cable length
0,3 m
LED display
no
Compression gland
M8 (SW9)
Cable identification
201
Shore hardness (wire isolation)
45 ±5 D
thermal resistance
flammwidrig nach UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
No. of poles
4
Locking material
Zinc die casting, matte nickel plated
Material (gasket)
FKM
Shield (Type)
Copper braid
Current load capacity
to DIN VDE 0298-4
Operating voltage
max. 50 V AC/60 V DC
Mounting method
inserted, tightened
Material (wire isolation)
PVC
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Color (jacket)
gray
Temperature range (fixed)
-30...+80 °C
Form
89531
Pollution Degree
3
Cable weight [g/m]
58,3 g
Color/numbering of wires
br, bk, bl, wh
Outer-Ø (jacket)
5.3 mm ±5%
Operating voltage (only UL listed)
30 V AC/DC
Material
PUR
Material (contact)
Copper alloy
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Single wire Ø (core)
0.15 mm
Shield
yes
Test voltage
2000 V AC
