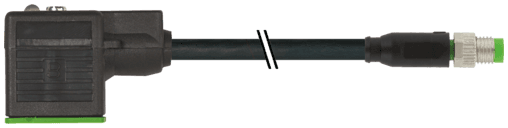

7000-88821-6130100 Murr Elektronik Cable Assemblies

Product Details

• Weight
  72 g
• Series
  Connector Systems
• Housing
  Black plastic (gray on request)
• Material (gasket)
  PUR
• Material (wire isolation)
  PVC
• Color (jacket)
  black
• Current load capacity
  to DIN VDE 0298-4
• Locking material
  Zinc die casting, nickel-plated
• Pollution Degree
  3
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Bend radius (moving)
  10× outer Ø
• LED display
  no
• Material
  MSUD (PBT); M8 (PUR)
• Temperature range
  -25...+85 °C, depending on cable quality
• Construction (core)
  19× 0.15 mm (multi-strand wire class 5)
• Wire-Ø incl. isolation
  1.25 mm ±5%
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Cable length
  1 m
• Locking of ports
  M3/M8 (recommended torque 0.4 Nm)
Standards
DIN EN 61076-2-104 (M8)
Cable Type
1 (PVC)
Cable weight [g/m]
34,1 g
Test voltage
2000 V AC
Material group
IEC 60664-1, category I
Mounting method
inserted, tightened
Wire isolation
PVC (br, bl, bk)
Color/numbering of wires
br, bk, bl
Jacket Color
black
Nominal voltage
UL 300 V AC
Protection
IP66K, IP67 inserted and tightened (EN 60529)
Material (contact)
Copper alloy
Outer Ø
4.6 mm ±5%
Shore hardness (wire isolation)
45 ±5 D
Outer-Ø (jacket)
4.6 mm ±5%
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
Operating current per contact
max. 4 A
suitable for corrugated tube (internal Ø)
6.5 mm
No./diameter of wires
3× 0.34 mm²
Resistor (core)
max. 60 Ω/km (20 °C)
Stranding combination
3 wires twisted
Temperature range (fixed)
-30...+80 °C
Operating voltage
max. 50 V AC/60 V DC
Form
88821
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Single wire Ø (core)
0.15 mm
Material (jacket)
PVC
Product article number of manufacturer
7000-88821-6130100
No. of poles
3
Material (contact surface)
MSUD (Ag); M8 (Au)
Cable identification
613
Material (wire)
Cu wire, bare
Shore hardness (jacket)
85 ±5 A
Bend radius (fixed)
5× outer Ø
Rated surge voltage
1.5 kV
Compression gland
M8 (SW9)
AWG
similar to AWG 22
Shield
no
Temperature range (mobile)
-5...+80 °C
