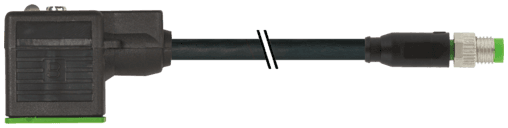

7000-88751-6130060 Murr Elektronik Cable Assemblies

Product Details

• Weight
  59 g
• Series
  Connector Systems
• Operating voltage
  24 V AC ±20% / DC ±25%
• Protection
  IP65 and IP67 when plugged and screwed down (EN 60529)
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Stranding combination
  3 wires twisted
• Operating current per contact
  max. 4 A
• Compression gland
  M8 (SW9)
• Cable identification
  613
• AWG
  similar to AWG 22
• Color (jacket)
  black
• Current load capacity
  to DIN VDE 0298-4
• Locking of ports
  M3/M8 (recommended torque 0.4 Nm)
• Mounting method
  inserted, tightened
• Cable Type
  1 (PVC)
• Shore hardness (wire isolation)
  45 ±5 D
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Jacket Color
  black
• Cable length
  0,6 m
• Switch off peak
  max. 55 V
Housing
Black plastic (gray on request)
No./diameter of wires
3× 0.34 mm²
Single wire Ø (core)
0.15 mm
Outer-Ø (jacket)
4.6 mm ±5%
Bend radius (moving)
10× outer Ø
Material group
IEC 60664-1, category I
Additional suppressor
Diode/Z-Diode
Material (gasket)
PUR
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Material (jacket)
PVC
Temperature range (fixed)
-30...+80 °C
Form
88751
Standards
DIN EN 61076-2-104 (M8)
Outer Ø
4.6 mm ±5%
Material (wire)
Cu wire, bare
Color/numbering of wires
br, bk, bl
LED display
yellow
Locking material
Zinc die casting, matte nickel plated
Wire isolation
PVC (br, bl, bk)
Resistor (core)
max. 60 Ω/km (20 °C)
chemical resistance
good resistance to oil, gasoline and chemicals
Temperature range (mobile)
-5...+80 °C
No. of poles
MSUD (3); M8 (4)
Material
MSUD (PBT); M8 (PUR)
Material (contact surface)
MSUD (Ag); M8 (Au)
Wire-Ø incl. isolation
1.25 mm ±5%
Test voltage
2000 V AC
Product article number of manufacturer
7000-88751-6130060
Current consumption
15 mA
suitable for corrugated tube (internal Ø)
6.5 mm
Pollution Degree
3
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Shore hardness (jacket)
85 ±5 A
Nominal voltage
UL 300 V AC
Rated surge voltage
0.8 kV
Material (contact)
Copper alloy
Temperature range
-25...+85 °C, depending on cable quality
Cable weight [g/m]
34,1 g
Material (wire isolation)
PVC
Shield
no
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
Bend radius (fixed)
5× outer Ø
