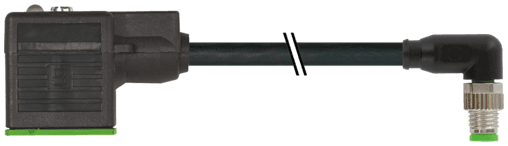

7000-88731-6330200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  103 g
• Series
  Connector Systems
• Material group
  IEC 60664-1, category I
• Protection
  IP65 and IP67 when plugged and screwed down (EN 60529)
• Mounting method
  inserted, tightened
• Cable weight [g/m]
  29,7 g
• Wire-Ø incl. isolation
  1.25 mm ±5%
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Product article number of manufacturer
  7000-88731-6330200
• Cable length
  2 m
• Operating current per contact
  max. 4 A
• suitable for corrugated tube (internal Ø)
  6.5 mm
• Pollution Degree
  3
• Construction (core)
  42× 0.1 mm (multi-strand wire class 6)
• Stranding combination
  3 wires twisted
• Color (jacket)
  black
• Bend radius (fixed)
  5× outer Ø
• Torsion stress
  ±180°/m
• Operating voltage
  24 V AC ±20% / DC ±25%
• Standards
  DIN EN 61076-2-104 (M8)
Material (wire)
Cu wire, bare
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Material (jacket)
PUR
Form
88731
Locking of ports
M3/M8 (recommended torque 0.4 Nm)
Material (gasket)
PUR
Single wire Ø (core)
0.1 mm
Color/numbering of wires
br, bk, bl
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
LED display
yellow
Additional suppressor
Diode/Z-Diode
Cable identification
633
Shore hardness (wire isolation)
70 ±5 D
Test voltage
2500 V AC
No. of poles
4
Compression gland
M8 (SW9)
Material (contact surface)
MSUD (Ag); M8 (Au)
AWG
similar to AWG 22
Shield
no
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
No. of torsion cycles
max. 2 Mio. (25 °C)
Switch off peak
max. 55 V
Material (contact)
Copper alloy
Cable Type
3 (PUR)
Nominal voltage
300 V AC
Bend radius (moving)
10× outer Ø
Torsion speed
35 cycles/min
Current consumption
15 mA
Locking material
Zinc die casting, matte nickel plated
Temperature range
-25...+85 °C, depending on cable quality
Diameter (core)
3× 0.34 mm²
Shore hardness (jacket)
90 ±5 A
Current load capacity
to DIN VDE 0298-4
Acceleration (C-track)
max. 10 m/s²
Material
MSUD (PBT); M8 (PUR)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material (wire isolation)
PP
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Rated surge voltage
0.8 kV
Housing
Black plastic (gray on request)
Resistor (core)
max. 57 Ω/km (20 °C)
Outer-Ø (jacket)
4.1 mm ±5%
Travel speed (C-track)
max. 3 m/s
