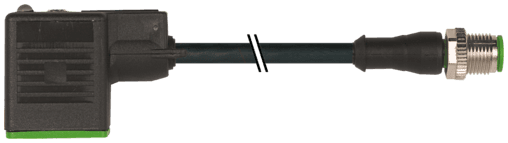

7000-88701-6530300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  130 g
• Series
  Connector Systems
• Material group
  IEC 60664-1, category I
• Temperature range
  -25...+85 °C, depending on cable quality
• Cable weight [g/m]
  29,7 g
• Stranding combination
  3 wires twisted
• Outer-Ø (jacket)
  4.3 mm ±5%
• Bend radius (fixed)
  5× outer Ø
• Rated surge voltage
  0.8 kV
• Locking of ports
  M3/M8 (recommended torque 0.4 Nm)
• Pollution Degree
  3
• Resistor (core)
  max. 60 Ω/km (20 °C)
• Diameter (core)
  3× 0.34 mm²
• Material (jacket)
  PUR
• Travel speed (C-track)
  max. 3.3 m/s
• Switch off peak
  max. 55 V
• Additional suppressor
  Diode/Z-Diode
• Material (gasket)
  PUR
• Material (wire isolation)
  PP
• thermal resistance
  flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
Torsion stress
±360°/m
Current consumption
15 mA
Standards
DIN EN 61076-2-104 (M8)
Cable identification
653
AWG
similar to AWG 22
Shore hardness (jacket)
58 ±3 D
Bend radius (moving)
10× outer Ø
Torsion speed
35 cycles/min
Operating current per contact
max. 4 A
Mounting method
inserted, tightened
C-track properties
10 Mio.
Shore hardness (wire isolation)
74 ±3 D
Nominal voltage
300 V AC
No. of torsion cycles
max. 1 Mio. (25 °C)
Locking material
Zinc die casting, matte nickel plated
Material (contact)
Copper alloy
Cable Type
5 (PUR schweißfunkenbeständig)
Color/numbering of wires
br, bk, bl
Test voltage
2500 V AC
Temperature range (mobile)
-25...+80 °C
Operating voltage
24 V AC ±20% / DC ±25%
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
No./diameter of wires
3× 0.34 mm²
Material (wire)
Cu wire, bare
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Product article number of manufacturer
7000-88701-6530300
LED display
yellow
Material
MSUD (PBT); M8 (PUR)
Housing
Black plastic (gray on request)
Outer Ø
4.3 mm ±5%
Single wire Ø (core)
0.1 mm
Jacket Color
black
Temperature range (fixed)
-40...+80 °C
suitable for corrugated tube (internal Ø)
6.5 mm
Material (contact surface)
MSUD (Ag); M8 (Au)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Wire-Ø incl. isolation
1.25 mm ±5%
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 5 m/s²
Form
88701
No. of poles
MSUD (4); M8 (3)
Compression gland
M8 (SW9)
Wire isolation
PP (br, bl, bk)
Construction (core)
42× 0.1 mm (multi-strand wire class 6)
Shield
no
Color (jacket)
black
Current load capacity
to DIN VDE 0298-4
Cable length
3 m
