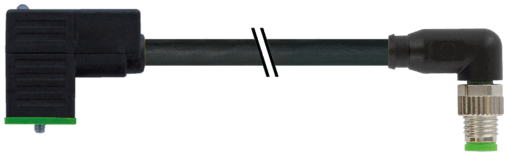

7000-88451-6130150 Murr Elektronik Cable Assemblies

Product Details

• Weight
  75 g
• Series
  Connector Systems
• Protection
  IP65 and IP67 when plugged and screwed down (EN 60529)
• Wire isolation
  PVC (br, bl, bk)
• Material (wire isolation)
  PVC
• Temperature range (mobile)
  -5...+80 °C
• Form
  88451
• Additional suppressor
  Diode/Z-Diode
• No./diameter of wires
  3× 0.34 mm²
• Cable weight [g/m]
  34,1 g
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Jacket Color
  black
• Product article number of manufacturer
  7000-88451-6130150
• Operating current per contact
  max. 4 A
• Locking of ports
  M2.5/M8 (recommended torque 0.4 Nm)
• Material (contact)
  Copper alloy
• Cable identification
  613
• Shore hardness (wire isolation)
  45 ±5 D
• Outer-Ø (jacket)
  4.6 mm ±5%
• Temperature range (fixed)
  -30...+80 °C
No. of poles
4
Locking material
Zinc die casting, matte nickel plated
Outer Ø
4.6 mm ±5%
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Material (jacket)
PVC
Bend radius (fixed)
5× outer Ø
Rated surge voltage
0.8 kV
Housing
Black plastic (gray on request)
Material (contact surface)
MSUD (Ag); M8 (Au)
Single wire Ø (core)
0.15 mm
Wire-Ø incl. isolation
1.25 mm ±5%
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
Cable length
1,5 m
Material
MSUD (PBT); M8 (PUR)
Pollution Degree
3
Cable Type
1 (PVC)
Shield
no
Nominal voltage
UL 300 V AC
Material group
IEC 60664-1, category I
LED display
yellow
Temperature range
-25...+85 °C, depending on cable quality
Material (wire)
Cu wire, bare
Stranding combination
3 wires twisted
Color (jacket)
black
Bend radius (moving)
10× outer Ø
Operating voltage
24 V AC ±20% / DC ±25%
Compression gland
M8 (SW9)
Standards
DIN EN 61076-2-104 (M8)
AWG
similar to AWG 22
Current load capacity
to DIN VDE 0298-4
Current consumption
15 mA
Mounting method
inserted, tightened
Resistor (core)
max. 60 Ω/km (20 °C)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
chemical resistance
good resistance to oil, gasoline and chemicals
Switch off peak
max. 55 V
suitable for corrugated tube (internal Ø)
6.5 mm
Material (gasket)
PUR
Approval (cable)
UL (AWM-Style 2464/1731), CSA
Color/numbering of wires
br, bk, bl
Shore hardness (jacket)
85 ±5 A
Test voltage
2000 V AC
