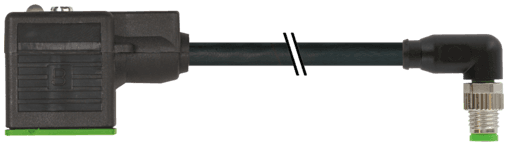

7000-88441-6330200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  81 g
• Series
  Connector Systems
• Form
  88441
• Mounting method
  inserted, tightened
• Cable Type
  3 (PUR)
• Shore hardness (wire isolation)
  70 ±5 D
• Outer-Ø (jacket)
  4.1 mm ±5%
• Bend radius (moving)
  10× outer Ø
• Torsion speed
  35 cycles/min
• Current consumption
  15 mA
• suitable for corrugated tube (internal Ø)
  6.5 mm
• Material (contact surface)
  MSUD (Ag); M8 (Au)
• Construction (core)
  42× 0.1 mm (multi-strand wire class 6)
• thermal resistance
  flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
• Switch off peak
  max. 55 V
• Locking material
  Zinc die casting, matte nickel plated
• Pollution Degree
  3
• Diameter (core)
  3× 0.34 mm²
• Shield
  no
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
Torsion stress
±180°/m
Operating voltage
24 V AC ±20% / DC ±25%
Additional suppressor
Diode/Z-Diode
Cable identification
633
Single wire Ø (core)
0.1 mm
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Current load capacity
to DIN VDE 0298-4
Bend radius (fixed)
5× outer Ø
Cable length
2 m
LED display
yellow
Housing
Black plastic (gray on request)
Material (gasket)
PUR
Material (wire isolation)
PP
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Operating current per contact
max. 4 A
Compression gland
M8 (SW9)
Cable weight [g/m]
29,7 g
Color/numbering of wires
br, bk, bl
Nominal voltage
300 V AC
Travel speed (C-track)
max. 3 m/s
Product article number of manufacturer
7000-88441-6330200
Locking of ports
M2.5/M8 (recommended torque 0.4 Nm)
Material (contact)
Copper alloy
Material (wire)
Cu wire, bare
Wire-Ø incl. isolation
1.25 mm ±5%
Material (jacket)
PUR
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
No. of torsion cycles
max. 2 Mio. (25 °C)
Rated surge voltage
0.8 kV
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Color (jacket)
black
No. of poles
MSUD (4); M8 (3)
Standards
DIN EN 61076-2-104 (M8)
Resistor (core)
max. 57 Ω/km (20 °C)
Stranding combination
3 wires twisted
Test voltage
2500 V AC
Acceleration (C-track)
max. 10 m/s²
Material group
IEC 60664-1, category I
Material
MSUD (PBT); M8 (PUR)
Temperature range
-25...+85 °C, depending on cable quality
AWG
similar to AWG 22
Shore hardness (jacket)
90 ±5 A
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
