7000-88421-6330150 Murr Elektronik Cable Assemblies
Part#:7000-88421-6330150
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

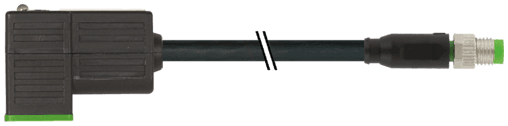

7000-88421-6330150 Murrelektronik - M8 MALE 0° /MSUD VALVE PLUG FORM C 8 MM(SMALL), PUR 3X0.34 black UL/CSA, drag ch 1.5m
Product Details
- Weight 67 g
- Series Connector Systems
- Operating voltage 24 V AC ±20% / DC ±25%
- Switch off delay time max. 20 ms
- Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
- Torsion speed 35 cycles/min
- Form 88421
- Compression gland M8 (SW9)
- Outer-Ø (jacket) 4.1 mm ±5%
- Torsion stress ±180°/m
- Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
- Switch off peak max. 55 V
- Pollution Degree 3
- Shield no
- Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
- Color (jacket) black
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- Nominal voltage 300 V AC
- Protection IP65, IP66K, IP67, IP68 inserted and tightened (EN 60529)
- Temperature range -25...+85 °C, depending on cable quality
- Cable Type 3 (PUR)
- Diameter (core) 3× 0.34 mm²
- Wire-Ø incl. isolation 1.25 mm ±5%
- Material (jacket) PUR
- Shore hardness (wire isolation) 70 ±5 D
- Bend radius (fixed) 5× outer Ø
- Material group IEC 60664-1, category I
- Material MSUD (PBT); M8 (PUR)
- Shore hardness (jacket) 90 ±5 A
- thermal resistance flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
- No. of torsion cycles max. 2 Mio. (25 °C)
- Acceleration (C-track) max. 10 m/s²
- Travel speed (C-track) max. 3 m/s
- Locking material Zinc die casting, matte nickel plated
- Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
- Material (wire) Cu wire, bare
- Material (wire isolation) PP
- Stranding combination 3 wires twisted
- Current load capacity to DIN VDE 0298-4
- Bend radius (moving) 10× outer Ø
- No. of bending cycles (C-track) max. 10 Mio. (25 °C)
- LED display LED (yellow)
- Cable weight [g/m] 29,7 g
- Cable identification 633
- Construction (core) 42× 0.1 mm (multi-strand wire class 6)
- Locking of ports M3/M8 (recommended torque 0.4 Nm)
- Housing Black plastic (gray on request)
- Approval (cable) cURus (AWM-Style 20549/10493); CE conform
- Resistor (core) max. 57 Ω/km (20 °C)
- Color/numbering of wires br, bk, bl
- Test voltage 2500 V AC
- Operating current per contact max. 4 A
- Rated surge voltage 0.8 kV
- Additional suppressor Diode/Z-Diode
- AWG similar to AWG 22
- Single wire Ø (core) 0.1 mm
- Product article number of manufacturer 7000-88421-6330150
- Cable length 1,5 m
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-88421-6330150 on Applied Automation is $33.50. Order now.
