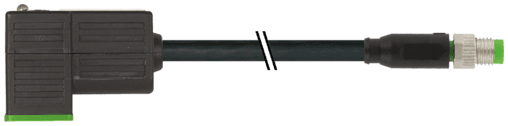

7000-88415-6130060 Murr Elektronik Cable Assemblies

Product Details

• Weight
  43 g
• Series
  Connector Systems
• Locking of ports
  M3/M8 (recommended torque 0.4 Nm)
• Wire isolation
  PVC (br, bl, bk)
• AWG
  similar to AWG 22
• Stranding combination
  3 wires twisted
• Bend radius (moving)
  10× outer Ø
• Protection
  IP65, IP66K, IP67, IP68 inserted and tightened (EN 60529)
• Compression gland
  M8 (SW9)
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Color/numbering of wires
  br, bk, bl
• Nominal voltage
  UL 300 V AC
• Operating voltage
  24 V AC ±20% / DC ±25%
• Resistor (core)
  max. 60 Ω/km (20 °C)
• Single wire Ø (core)
  0.15 mm
• Outer-Ø (jacket)
  4.6 mm ±5%
• Cable length
  0,6 m
• Form
  88415
• Locking material
  Zinc die casting, matte nickel plated
• Cable weight [g/m]
  34,1 g
Shore hardness (wire isolation)
45 ±5 D
Bend radius (fixed)
5× outer Ø
Operating current per contact
max. 4 A
Switch off delay time
max. 20 ms
Outer Ø
4.6 mm ±5%
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Material (jacket)
PVC
Current load capacity
to DIN VDE 0298-4
Product article number of manufacturer
7000-88415-6130060
Rated surge voltage
0.8 kV
Additional suppressor
Diode/Z-Diode
No./diameter of wires
3× 0.34 mm²
Material (wire isolation)
PVC
Color (jacket)
black
Temperature range (fixed)
-30...+80 °C
Switch off peak
max. 55 V
Pollution Degree
3
Cable Type
1 (PVC)
Shield
no
Jacket Color
black
LED display
LED (yellow)
Temperature range
-25...+85 °C, depending on cable quality
Material (wire)
Cu wire, bare
chemical resistance
good resistance to oil, gasoline and chemicals
Material
MSUD (PBT); M8 (PUR)
Cable identification
613
Wire-Ø incl. isolation
1.25 mm ±5%
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
Material group
IEC 60664-1, category I
Housing
Black plastic (gray on request)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Shore hardness (jacket)
85 ±5 A
Test voltage
2000 V AC
Temperature range (mobile)
-5...+80 °C
