7000-88415-0130030 Murr Elektronik Cable Assemblies
Part#:7000-88415-0130030
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

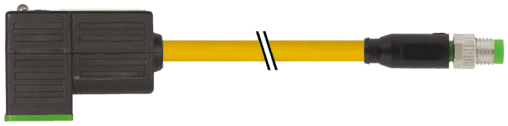

7000-88415-0130030 Murrelektronik - M8 MALE 0° 3P/MSUD VALVE PLUG FORM CI 9.4 MM(SMALL), PVC 3X0.34 YELLOW, 0.3m
Product Details
- Weight 32 g
- Series Connector Systems
- Rated surge voltage 0.8 kV
- Locking of ports M3/M8 (recommended torque 0.4 Nm)
- Switch off delay time max. 20 ms
- Material (wire isolation) PVC
- Color (jacket) yellow
- Form 88415
- Additional suppressor Diode/Z-Diode
- Cable weight [g/m] 34,1 g
- Color/numbering of wires br, bk, bl
- Switch off peak max. 55 V
- Approval (cable) cURus (AWM-Style 2464/1731), CE-conform
- Material MSUD (PBT); M8 (PUR)
- Cable identification 013
- Material (wire) Cu wire, bare
- Material (jacket) PVC
- LED display LED (yellow)
- Resistor (core) max. 57 Ω/km (20 °C)
- Construction (core) 19× 0.15 mm (multi-strand wire class 5)
- Nominal voltage UL 300 V AC
- Temperature range -25...+85 °C, depending on cable quality
- Wire-Ø incl. isolation 1.25 mm ±5%
- Shield no
- Current load capacity to DIN VDE 0298-4
- Operating current per contact max. 4 A
- Cable Type 1 (PVC)
- Diameter (core) 3× 0.34 mm²
- Single wire Ø (core) 0.15 mm
- Outer-Ø (jacket) 4.6 mm ±5%
- chemical resistance good resistance to oil, gasoline and chemicals
- Bend radius (fixed) 5× outer Ø
- Protection IP65, IP66K, IP67, IP68 inserted and tightened (EN 60529)
- Housing Black plastic (gray on request)
- Locking material Zinc die casting, matte nickel plated
- AWG similar to AWG 22
- Material property (jacket) CFC-, cadmium-, silicone- and lead-free
- thermal resistance flammwidrig nach UL 1581 VW1 / CSA FT1 / IEC 60332-1-2
- Product article number of manufacturer 7000-88415-0130030
- Bend radius (moving) 10× outer Ø
- Operating voltage 24 V AC ±20% / DC ±25%
- Pollution Degree 3
- Material property (wire isolation) CFC-, cadmium-, silicone- and lead-free
- Stranding combination 3 wires twisted
- Test voltage 2000 V AC
- Temperature range (fixed) -30...+80 °C
- Temperature range (mobile) -5...+80 °C
- Material group IEC 60664-1, category I
- Compression gland M8 (SW9)
- Shore hardness (wire isolation) 45 ±5 D
- Shore hardness (jacket) 85 ±5 A
- Cable length 0,3 m
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-88415-0130030 on Applied Automation is $31.10. Order now.
