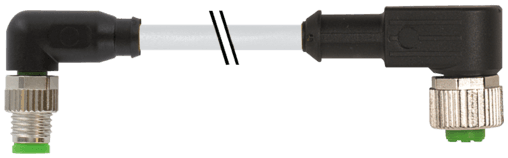

7000-88321-2500030 Murr Elektronik Cable Assemblies

Product Details

• Weight
  27 g
• Series
  Connector Systems
• Operating current per contact
  max. 4 A
• suitable for corrugated tube (internal Ø)
  M12 (10 mm); M8 (6.5 mm)
• Cable Type
  5 (PUR schweißfunkenbeständig)
• Shore hardness (wire isolation)
  74 ±3 D
• thermal resistance
  flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
• Temperature range (mobile)
  -25...+80 °C
• Torsion stress
  ±360°/m
• Form
  88321
• Temperature range
  -25...+85 °C, depending on cable quality
• Material (wire isolation)
  PP
• Outer-Ø (jacket)
  4.3 mm ±5%
• Temperature range (fixed)
  -40...+80 °C
• Operating voltage
  max. 50 V AC/60 V DC
• Material (wire)
  Cu wire, bare
• Wire-Ø incl. isolation
  1.25 mm ±5%
• Acceleration (C-track)
  max. 5 m/s²
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Locking material
  Zinc die casting, matte nickel plated
Cable weight [g/m]
26,4 g
Color (jacket)
gray
No. of torsion cycles
max. 1 Mio. (25 °C)
Bend radius (fixed)
5× outer Ø
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
No./diameter of wires
3× 0.25 mm²
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
Current load capacity
to DIN VDE 0298-4
Torsion speed
35 cycles/min
Operating voltage (only UL listed)
30 V AC/DC
Compression gland
M8 (SW9), M12 (SW13)
C-track properties
10 Mio.
Material (jacket)
PUR
Bend radius (moving)
10× outer Ø
Product article number of manufacturer
7000-88321-2500030
Outer Ø
4.3 mm ±5%
Wire isolation
PP (br, bl, bk)
Shore hardness (jacket)
58 ±3 D
Color/numbering of wires
br, bk, bl
Jacket Color
gray
Locking of ports
Screw thread (M8/M12×1 mm) recommended torque 0.4/0.6 Nm, self-securing
Cable identification
250
Stranding combination
3 wires twisted
Shield
no
Cable length
0,3 m
Rated surge voltage
1.5 kV
Standards
DIN EN 61076-2-101 (M12), DIN EN 61076-2-104 (M8)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Diameter (core)
3× 0.25 mm²
AWG
similar to AWG 24
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Construction (core)
32× 0.1 mm (multi-strand wire class 6)
Material group
IEC 60664-1, category I
Pollution Degree
3
Resistor (core)
max. 79 Ω/km (20 °C)
Single wire Ø (core)
0.1 mm
Nominal voltage
300 V AC
Travel speed (C-track)
max. 3.3 m/s
Test voltage
2500 V AC
