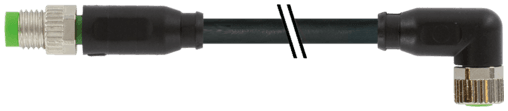

7000-88021-6300120 Murr Elektronik Cable Assemblies

Product Details

• Weight
  40 g
• Series
  Connector Systems
• Form
  88021
• Standards
  DIN EN 61076-2-104 (M8)
• Resistor (core)
  max. 79 Ω/km (20 °C)
• Outer-Ø (jacket)
  4.1 mm ±5%
• Shield
  no
• Bend radius (moving)
  10× outer Ø
• LED display
  no
• Material
  PUR
• Pollution Degree
  3
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• Shore hardness (jacket)
  90 ±5 A
• Bend radius (fixed)
  5× outer Ø
• Product article number of manufacturer
  7000-88021-6300120
• Material group
  IEC 60664-1, category I
• suitable for corrugated tube (internal Ø)
  6.5 mm
• Single wire Ø (core)
  0.1 mm
• Shore hardness (wire isolation)
  70 ±5 D
• Material (jacket)
  PUR
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Operating voltage
max. 50 V AC/60 V DC
Material (contact)
Copper alloy
Cable identification
630
Diameter (core)
3× 0.25 mm²
Stranding combination
3 wires twisted
Torsion speed
35 cycles/min
Locking material
Zinc die casting, matte nickel plated
Temperature range
-25...+85 °C, depending on cable quality
Wire-Ø incl. isolation
1.25 mm ±5%
Color (jacket)
black
Rated surge voltage
1.5 kV
Material (gasket)
FKM
Construction (core)
32× 0.1 mm (multi-strand wire class 6)
Nominal voltage
300 V AC
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Travel speed (C-track)
max. 3 m/s
Operating voltage (only UL listed)
30 V AC/DC
Material (contact surface)
Au
Cable Type
3 (PUR)
Color/numbering of wires
br, bk, bl
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Acceleration (C-track)
max. 10 m/s²
No. of poles
3
Mounting method
inserted, tightened
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Current load capacity
to DIN VDE 0298-4
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Operating current per contact
max. 4 A
Compression gland
M8 (SW9)
Cable weight [g/m]
26,4 g
AWG
similar to AWG 24
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
No. of torsion cycles
max. 2 Mio. (25 °C)
Cable length
1,2 m
Locking of ports
Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Material (wire)
Cu wire, bare
Material (wire isolation)
PP
Test voltage
2500 V AC
Torsion stress
±180°/m
