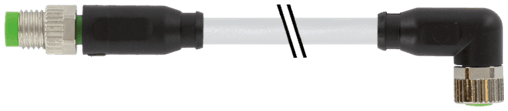

7000-88021-2100030 Murr Elektronik Cable Assemblies

Product Details

• Weight
  20 g
• Series
  Connector Systems
• Material (gasket)
  FKM
• Material (wire isolation)
  PVC
• Color (jacket)
  gray
• Bend radius (moving)
  10× outer Ø
• Stranding combination
  3 wires twisted
• Nominal voltage
  UL 300 V AC
• Shore hardness (jacket)
  85 ±5 A
• Bend radius (fixed)
  5× outer Ø
• Current load capacity
  to DIN VDE 0298-4
• LED display
  no
• Material (contact surface)
  Au
• Approval (cable)
  UL (AWM-Style 2464/1731), CSA
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Outer-Ø (jacket)
  4.5 mm ±5%
• Temperature range (fixed)
  -30...+80 °C
• Material group
  IEC 60664-1, category I
• Pollution Degree
  3
• Resistor (core)
  max. 79 Ω/km (20 °C)
Material
PUR
Operating voltage
max. 50 V AC/60 V DC
No. of poles
3
Locking material
Zinc die casting, matte nickel plated
Mounting method
inserted, tightened
Cable identification
210
Cable weight [g/m]
29,37 g
AWG
similar to AWG 24
Wire-Ø incl. isolation
1.25 mm ±5%
Shield
no
Rated surge voltage
1.5 kV
Operating current per contact
max. 4 A
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Compression gland
M8 (SW9)
Diameter (core)
3× 0.25 mm²
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Test voltage
2000 V AC
Operating voltage (only UL listed)
30 V AC/DC
Material (contact)
Copper alloy
Material (wire)
Cu wire, bare
chemical resistance
good resistance to oil, gasoline and chemicals
Form
88021
Cable Type
1 (PVC)
Single wire Ø (core)
0.15 mm
Material (jacket)
PVC
Temperature range (mobile)
-5...+80 °C
Locking of ports
Screw thread (M8×1 mm) recommended torque 0.4 Nm, self-securing
suitable for corrugated tube (internal Ø)
6.5 mm
Standards
DIN EN 61076-2-104 (M8)
Temperature range
-25...+85 °C, depending on cable quality
Construction (core)
14× 0.15 mm (multi-strand wire class 5)
Shore hardness (wire isolation)
45 ±5 D
Color/numbering of wires
br, bk, bl
thermal resistance
flame retardant UL 1581 VW1 / CSA FT1
Product article number of manufacturer
7000-88021-2100030
Cable length
0,3 m
