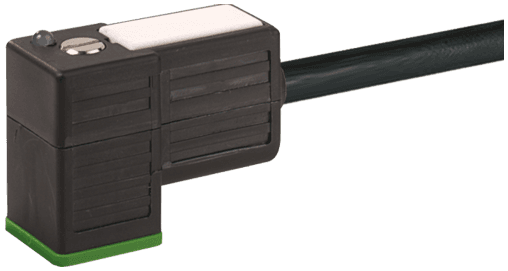

7000-80021-6261500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  787 g
• Series
  Connector Systems
• Form
  80021
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Test voltage
  2000 V AC
• Acceleration (C-track)
  max. 5 m/s²
• Housing
  Black plastic (gray on request)
• Cable Type
  2 (PUR/PVC)
• Shore hardness (wire isolation)
  43 ±5 D
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Bend radius (fixed)
  10× outer Ø
• Protection
  IP67 inserted and tightened (EN 60529)
• Approval (cable)
  UL (AWM-Style 20549/1731), CSA; CE conform
• Material (wire isolation)
  PVC
• Outer-Ø (jacket)
  5.9 mm ±5%
• Cable length
  15 m
• Temperature range
  -25...+85 °C, depending on cable quality
• Cable weight [g/m]
  55,33 g
• Wire-Ø incl. isolation
  1.8 mm ±5%
Nominal voltage
UL 300 V AC
Travel speed (C-track)
max. 3.3 m/s
Operating current per contact
max. 4 A
Material (wire)
Cu wire, bare
Material (jacket)
PUR/PVC
Temperature range (mobile)
-5...+80 °C
Switch off peak
max. 55 V
Diameter (core)
3× 0.75 mm²
Shield
no
Temperature range (fixed)
-30...+80 °C
Locking of ports
M2.5 (recommended torque 0.4 Nm)
Single wire Ø (core)
0.15 mm
Shore hardness (jacket)
80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket)
Product article number of manufacturer
7000-80021-6261500
Operating voltage
24 V AC ±20% / DC ±25%
AWG
similar to AWG 18
Stranding combination
3 wires twisted
Current load capacity
to DIN VDE 0298-4
Switch off delay time
max. 20 ms
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
chemical resistance
good resistance to oil, gasoline and chemicals
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
Cable identification
626
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Color (jacket)
black
Bend radius (moving)
15× outer Ø
