7000-78211-0000000 Murr Elektronik Cable Assemblies
Part#:7000-78211-0000000
Alt. Part#:7000-78231-0000000
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

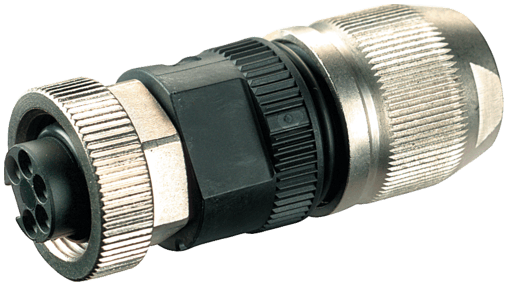

7000-78211-0000000 Murrelektronik - MOSA 7/8'' FEMALE 0° FIELD-WIREABLE (IDC), 5-pol., 0,75-1,50mm²
Product Details
- Weight 94 g
- Series Connector Systems
- Operating voltage max. 230/400 V AC/DC
- Temperature range -40...+85 °C
- Protection IP65 and IP67 when plugged and screwed down (EN 60529)
- Form 78211
- Pollution Degree 3
- Coding A-coded, 5-pole
- Locking of ports Screw thread 7/8" (recommended torque 1.5 Nm) self-securing
- Sealing range (cable Ø) 6.8...9.5 mm
- Connection cross section 0.75...1.5 mm² (conductor diameter min. 0.15 mm)
- Locking material Brass
- Operating current per contact max. 10 A
- Outer wire Ø max. 2.8 mm
- Rated surge voltage 4.0 kV
- Product article number of manufacturer 7000-78211-0000000
- Material group IEC 60664-1, category I
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 7000-78211-0000000 on Applied Automation is $49.80. Order now.
