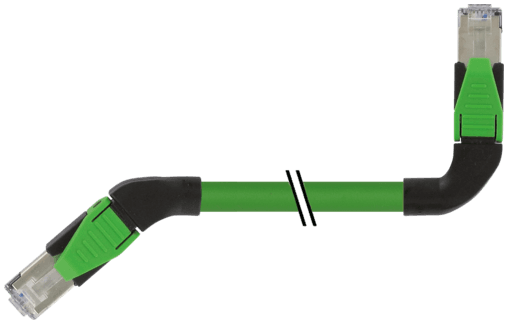

7000-74547-7960080 Murr Elektronik Cable Assemblies

Product Details

• Weight
  79 g
• Series
  Connector Systems
• Locking material
  PA
• Shield (Type)
  Copper braid
• Material (wire isolation)
  PE
• Acceleration (C-track)
  max. 2 m/s²
• Material group
  IEC 60664-1, category I
• Cable identification
  796
• Diameter (core)
  1× 4× AWG22/7
• Nominal voltage
  300 V
• No. of bending cycles (C-track)
  max. 3 Mio. (25 °C)
• Operating current per contact
  max. 1.5 A (20 °C)
• Transfer parameters
  CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
• Shield
  yes
• Test voltage
  2000 V AC (test duration 1 min)
• Traversing distance (C-track)
  max. 5 m (horizontal)
• Rated surge voltage
  1.0 kV
• Cable weight [g/m]
  69,3 g
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Color (jacket)
  green
No. of torsion cycles
max. 1 Mio. (25 °C)
Form
74547
Resistor (core)
max. 55 Ω/km (20 °C)
thermal resistance
flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
Cable length
0,8 m
Protection
IP20
Material (wire)
Cu wire, bare
Wire-Ø incl. isolation
1.4 mm ±5%
Bend radius (moving)
12× outer Ø
Pollution Degree
3
Color/numbering of wires
wh, ye, bl, or
Temperature range (mobile)
-30...+70 °C
Product article number of manufacturer
7000-74547-7960080
Operating voltage
max. 60 V DC
Temperature range
-25...+85 °C, depending on cable quality
Material (jacket)
PUR
Temperature range (fixed)
-40...+80 °C
Bend radius (fixed)
5× outer Ø
Material
PUR
Construction (core)
7× 0.254 mm
Outer-Ø (jacket)
6.7 mm ±5%
Torsion stress
±180°/m
Transfer rate
up to 100 Mbit/s full duplex
Approval (cable)
cURus (AWM-Style 20549/11602), CE-conform
optical shield cover
min. 85%
chemical resistance
Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std.
Travel speed (C-track)
max. 3.3 m/s
