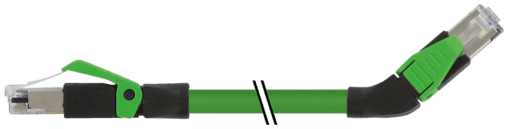

7000-74361-7964500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  2857 g
• Series
  Connector Systems
• LED display
  no
• Cable identification
  796
• Test voltage
  2000 V AC (test duration 1 min)
• Operating current per contact
  max. 1.5 A (20 °C)
• Operating voltage (only UL listed)
  max. 30 V DC
• Temperature range
  -25...+85 °C, depending on cable quality
• Outer-Ø (jacket)
  6.7 mm ±5%
• Material
  PUR
• Acceleration (C-track)
  max. 2 m/s²
• Transfer rate
  up to 100 Mbit/s full duplex
• Approval (cable)
  cURus (AWM-Style 20549/11602), CE-conform
• suitable for corrugated tube (internal Ø)
  without
• Diameter (core)
  1× 4× AWG22/7
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• chemical resistance
  Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std.
• Product article number of manufacturer
  7000-74361-7964500
• Form
  74361
• Locking of ports
  Snap-in connector
Resistor (core)
max. 55 Ω/km (20 °C)
Material (wire isolation)
PE
thermal resistance
flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
Temperature range (fixed)
-40...+80 °C
Cable length
45 m
Transfer parameters
CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Cable weight [g/m]
69,3 g
Material (wire)
Cu wire, bare
optical shield cover
min. 85%
Nominal voltage
300 V
No. of bending cycles (C-track)
max. 3 Mio. (25 °C)
Torsion stress
±180°/m
Rated surge voltage
1.0 kV
Locking material
PA
Construction (core)
7× 0.254 mm
Shield
yes
Color (jacket)
green
Traversing distance (C-track)
max. 5 m (horizontal)
No. of torsion cycles
max. 1 Mio. (25 °C)
Material group
IEC 60664-1, category I
Bend radius (moving)
12× outer Ø
Protection
IP20 inserted and tightened (EN 60529)
Color/numbering of wires
wh, ye, bl, or
Shield (Type)
Copper braid
Temperature range (mobile)
-30...+70 °C
Mounting method
inserted
Material (jacket)
PUR
Bend radius (fixed)
5× outer Ø
Operating voltage
max. 60 V DC
Pollution Degree
3
Wire-Ø incl. isolation
1.4 mm ±5%
Travel speed (C-track)
max. 3.3 m/s
