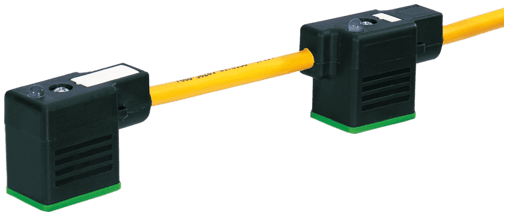

7000-58101-0370300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  242 g
• Series
  Connector Systems
• Rated surge voltage
  0.8 kV
• Temperature range
  -25...+85 °C, depending on cable quality
• AWG
  similar to AWG 18
• Color (jacket)
  yellow
• Bend radius (moving)
  10× outer Ø
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Temperature range (fixed)
  -40...+80 °C
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Current load capacity
  to DIN VDE 0298-4
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Operating voltage
  24 V AC ±20% / DC ±25%
• Operating current per contact
  max. 4 A
• Wire isolation
  PP (bk num, gnye)
• Switch off delay time
  max. 20 ms
• Housing
  Black plastic (gray on request)
• Shore hardness (wire isolation)
  70 ±5 D
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Wire-Ø incl. isolation
  1.85 mm ±5%
Locking of ports
M3 (recommended torque 0.4 Nm)
Cable Type
3 (PUR)
Single wire Ø (core)
0.15 mm
Shore hardness (jacket)
90 ±5 A
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Temperature range (mobile)
-25...+80 °C
Bend radius (fixed)
5× outer Ø
Switch off peak
max. 55 V
LED display
(yellow)
Cable identification
037
Cable weight [g/m]
69,3 g
Diameter (core)
4× 0.75 mm²
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
6.5 mm ±5%
Jacket Color
yellow
Travel speed (C-track)
max. 3 m/s
Acceleration (C-track)
max. 10 m/s²
Product article number of manufacturer
7000-58101-0370300
No./diameter of wires
4× 0.75 mm²
Resistor (core)
max. 26 Ω/km (20 °C)
Stranding combination
4 wires twisted
Material (jacket)
PUR
Test voltage
2500 V AC
Cable length
3 m
Protection
IP67 inserted and tightened (EN 60529)
Material (wire)
Cu wire, bare
Material (wire isolation)
PP
Nominal voltage
300 V AC
Torsion speed
35 cycles/min
Form
58101
C-track properties
10 Mio.
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Shield
no
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Torsion stress
±180°/m
Current consumption
approx. 12 mA
Outer Ø
6.5 mm ±5%
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
