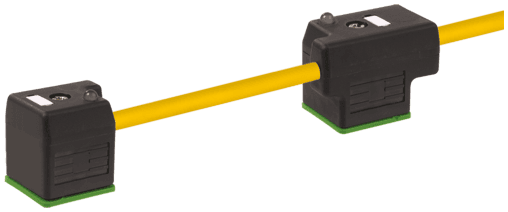

7000-58081-0370300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  271 g
• Series
  Connector Systems
• Material group
  IEC 60664-1, category I
• Protection
  IP67 inserted and tightened (EN 60529)
• C-track properties
  10 Mio.
• Shore hardness (wire isolation)
  70 ±5 D
• Stranding combination
  4 wires twisted
• Test voltage
  2500 V AC
• Torsion speed
  35 cycles/min
• Locking of ports
  M3 (recommended torque 0.4 Nm)
• Additional suppressor
  Diode/Z-Diode
• Cable Type
  3 (PUR)
• Material (wire isolation)
  PP
• Material (jacket)
  PUR
• Nominal voltage
  300 V AC
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Form
  58081
• Operating current per contact
  max. 4 A
• Temperature range
  -25...+85 °C, depending on cable quality
• Single wire Ø (core)
  0.15 mm
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Bend radius (moving)
10× outer Ø
suitable for corrugated tube (internal Ø)
without
Outer Ø
6.5 mm ±5%
Resistor (core)
max. 26 Ω/km (20 °C)
Wire-Ø incl. isolation
1.85 mm ±5%
Current load capacity
to DIN VDE 0298-4
No. of torsion cycles
max. 2 Mio. (25 °C)
LED display
yellow
Current consumption
max. 15 mA
Cable weight [g/m]
69,3 g
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Bend radius (fixed)
5× outer Ø
Switch off peak
max. 55 V
Pollution Degree
3
Wire isolation
PP (bk num, gnye)
Diameter (core)
4× 0.75 mm²
Color/numbering of wires
bk numbered, gnye longitudinally striped
Color (jacket)
yellow
Acceleration (C-track)
max. 10 m/s²
Rated surge voltage
0.8 kV
Housing
Black plastic (gray on request)
Cable identification
037
Shore hardness (jacket)
90 ±5 A
Product article number of manufacturer
7000-58081-0370300
Material
PBT
Switch off delay time
max. 20 ms
Material (wire)
Cu wire, bare
AWG
similar to AWG 18
Shield
no
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Travel speed (C-track)
max. 3 m/s
Operating voltage
24 V AC ±20% / DC ±25%
Material (gasket)
PUR
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Jacket Color
yellow
Temperature range (mobile)
-25...+80 °C
Cable length
3 m
Locking material
Steel (galvanized)
No./diameter of wires
4× 0.75 mm²
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Outer-Ø (jacket)
6.5 mm ±5%
Temperature range (fixed)
-40...+80 °C
Torsion stress
±180°/m
