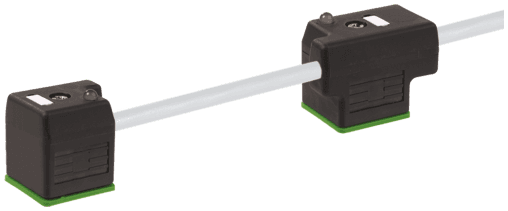

7000-58041-2170500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  359 g
• Series
  Connector Systems
• Cable length
  5 m
• Product article number of manufacturer
  7000-58041-2170500
• Bend radius (moving)
  10× outer Ø
• Bend radius (fixed)
  5× outer Ø
• Test voltage
  3000 V AC
• Current load capacity
  to DIN VDE 0298-4
• Nominal voltage
  300/500 V AC
• Temperature range (mobile)
  -5...+70 °C
• Temperature range (fixed)
  -30...+70 °C
• Jacket Color
  gray
• Outer-Ø (jacket)
  6.5 mm ±5%
• Shore hardness (jacket)
  80 ±5 A
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Color (jacket)
  gray
• Material (jacket)
  PVC
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Stranding combination
  4 wires twisted
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Housing
Black plastic (gray on request)
Shield
no
Wire-Ø incl. isolation
1.8 mm ±5%
Shore hardness (wire isolation)
43 ±5 D
Protection
IP67 inserted and tightened (EN 60529)
Material (wire isolation)
PVC
AWG
similar to AWG 18
Locking of ports
M3 (recommended torque 0.4 Nm)
Diameter (core)
4× 0.75 mm²
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Switch off peak
max. 55 V
Single wire Ø (core)
0.2 mm
Resistor (core)
max. 26 Ω/km (20 °C)
Material (wire)
Cu wire, bare
Switch off delay time
max. 20 ms
Approval (cable)
CE conform
Wire isolation
PVC (bk num, gnye)
Cable weight [g/m]
75,9 g
Cable Type
1 (PVC)
Temperature range
-25...+85 °C, depending on cable quality
Cable identification
217
Outer Ø
6.5 mm ±5%
No./diameter of wires
4× 0.75 mm²
Operating voltage
24 V AC ±20% / DC ±25%
Form
58041
Operating current per contact
max. 4 A
Rated surge voltage
0.8 kV
