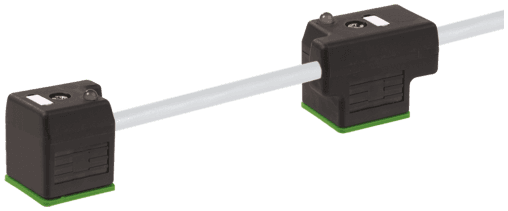

7000-58021-2370300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  246 g
• Series
  Connector Systems
• Switch off delay time
  max. 20 ms
• Operating current per contact
  max. 4 A
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Construction (core)
  42× 0.15 mm (multi-strand wire class 6)
• Jacket Color
  gray
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Locking of ports
  M3 (recommended torque 0.4 Nm)
• No./diameter of wires
  4× 0.75 mm²
• AWG
  similar to AWG 18
• Shield
  no
• Current load capacity
  to DIN VDE 0298-4
• Operating voltage
  24 V AC ±20% / DC ±25%
• Wire isolation
  PP (bk num, gnye)
• Material (wire isolation)
  PP
• Color (jacket)
  gray
• Bend radius (fixed)
  5× outer Ø
• Rated surge voltage
  0.8 kV
• C-track properties
  10 Mio.
Shore hardness (wire isolation)
70 ±5 D
Material (jacket)
PUR
Form
58021
Diameter (core)
4× 0.75 mm²
Color/numbering of wires
bk numbered, gnye longitudinally striped
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Acceleration (C-track)
max. 10 m/s²
Temperature range
-25...+85 °C, depending on cable quality
Cable Type
3 (PUR)
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Temperature range (mobile)
-25...+80 °C
Torsion stress
±180°/m
Test voltage
2500 V AC
Product article number of manufacturer
7000-58021-2370300
Cable length
3 m
Switch off peak
max. 55 V
Cable weight [g/m]
69,3 g
Single wire Ø (core)
0.15 mm
Shore hardness (jacket)
90 ±5 A
Bend radius (moving)
10× outer Ø
Housing
Black plastic (gray on request)
Outer Ø
6.5 mm ±5%
Resistor (core)
max. 26 Ω/km (20 °C)
Nominal voltage
300 V AC
Travel speed (C-track)
max. 3 m/s
Protection
IP67 inserted and tightened (EN 60529)
Cable identification
237
Wire-Ø incl. isolation
1.85 mm ±5%
Outer-Ø (jacket)
6.5 mm ±5%
Temperature range (fixed)
-40...+80 °C
Torsion speed
35 cycles/min
Material (wire)
Cu wire, bare
Stranding combination
4 wires twisted
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
No. of torsion cycles
max. 2 Mio. (25 °C)
