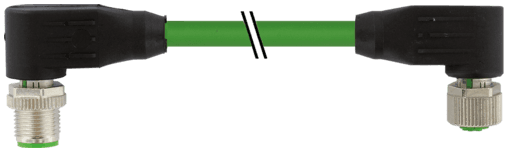

7000-46061-8021200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  1186 g
• Series
  Connector Systems
• Coding
  A-coded
• No. of poles
  6
• Mounting method
  inserted, tightened
• Locking material
  Zinc die casting, matte nickel plated
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Diameter (core)
  4× 0.5 + 2× 0.25 mm²
• Color/numbering of wires
  (bl, wh, br, bk) + (gr, pk)
• optical shield cover
  min. 80%
• Test voltage
  1500 V (wire/wire); 1200 V (wire/shield)
• Temperature range (fixed)
  -50...+80 °C
• Cable length
  12 m
• LED display
  no
• Temperature range
  -25...+85 °C, depending on cable quality
• Material (wire isolation)
  TPE-E
• Operating voltage (only UL listed)
  30 V AC/DC
• Compression gland
  M12 (SW13)
• Single wire Ø (core)
  0.15 mm (0.5 mm²); 0.1 mm (0.25 mm²)
• Outer-Ø (jacket)
  7.9 mm ±5%
Material (jacket)
PUR
Bend radius (moving)
10× outer Ø
Torsion stress
±180°/m
Nominal voltage
300 V AC
Travel speed (C-track)
max. 2 m/s
Material group
IEC 60664-1, category I
suitable for corrugated tube (internal Ø)
without
Cable weight [g/m]
95,7 g
Shield
yes
Rated surge voltage
0.8 kV
Material (contact surface)
Au
Cable identification
802
Wire-Ø incl. isolation
1.5 mm ±5% (0.5 mm²); 1.4 mm ±5% (0.25 mm²)
Operating voltage
max. 30 V AC/DC
Protection
IP65 and IP67 when plugged and screwed down (EN 60529)
Construction (core)
28× 0.15 mm (0.5 mm²); 32× 0.1 mm (0.25 mm²); (multi-strand wire class 6)
Shore hardness (jacket)
89 ±5 A
No. of bending cycles (C-track)
max. 5 Mio. (25 °C)
Form
46061
Operating current per contact
max. 4 A
Material (contact)
Copper alloy
Material (gasket)
FKM
Material (wire)
Cu wire, bare
AWG
similar to AWG 20 (0.5 mm²); similar to AWG 24 (0.25 mm²)
Shield (Type)
Copper braid
Material property (jacket)
CFC-, halogen-, cadmium-, silicone-free, matt, low-adhesion, machine easy to process, abrasion-resistant
Temperature range (mobile)
-40...+80 °C
Product article number of manufacturer
7000-46061-8021200
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Pollution Degree
3
Shore hardness (wire isolation)
55 ±5 D
Color (jacket)
green
Bend radius (fixed)
5× outer Ø
