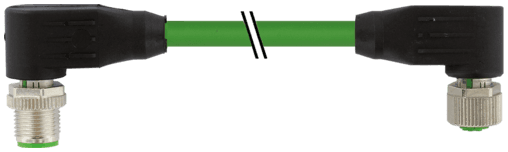

7000-46061-8020080 Murr Elektronik Cable Assemblies

Product Details

• Weight
  114 g
• Series
  Connector Systems
• Operating voltage
  max. 30 V AC/DC
• Protection
  IP65 and IP67 when plugged and screwed down (EN 60529)
• Mounting method
  inserted, tightened
• Single wire Ø (core)
  0.15 mm (0.5 mm²); 0.1 mm (0.25 mm²)
• Shield
  yes
• Shore hardness (jacket)
  89 ±5 A
• Travel speed (C-track)
  max. 2 m/s
• Material group
  IEC 60664-1, category I
• Compression gland
  M12 (SW13)
• Construction (core)
  28× 0.15 mm (0.5 mm²); 32× 0.1 mm (0.25 mm²); (multi-strand wire class 6)
• Material (jacket)
  PUR
• Bend radius (fixed)
  5× outer Ø
• Coding
  A-coded
• suitable for corrugated tube (internal Ø)
  without
• Temperature range
  -25...+85 °C, depending on cable quality
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone-free, matt, low-adhesion, machine easy to process, abrasion-resistant
• Nominal voltage
  300 V AC
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Shore hardness (wire isolation)
55 ±5 D
Test voltage
1500 V (wire/wire); 1200 V (wire/shield)
Torsion stress
±180°/m
Rated surge voltage
0.8 kV
Material (gasket)
FKM
Material (wire)
Cu wire, bare
Wire-Ø incl. isolation
1.5 mm ±5% (0.5 mm²); 1.4 mm ±5% (0.25 mm²)
Temperature range (mobile)
-40...+80 °C
No. of poles
6
Material (contact surface)
Au
AWG
similar to AWG 20 (0.5 mm²); similar to AWG 24 (0.25 mm²)
optical shield cover
min. 80%
Color (jacket)
green
No. of bending cycles (C-track)
max. 5 Mio. (25 °C)
Operating current per contact
max. 4 A
Material (contact)
Copper alloy
Shield (Type)
Copper braid
Bend radius (moving)
10× outer Ø
LED display
no
Cable weight [g/m]
95,7 g
Material (wire isolation)
TPE-E
Product article number of manufacturer
7000-46061-8020080
Operating voltage (only UL listed)
30 V AC/DC
Cable identification
802
Color/numbering of wires
(bl, wh, br, bk) + (gr, pk)
Temperature range (fixed)
-50...+80 °C
Form
46061
Locking material
Zinc die casting, matte nickel plated
Pollution Degree
3
Diameter (core)
4× 0.5 + 2× 0.25 mm²
Outer-Ø (jacket)
7.9 mm ±5%
Cable length
0,8 m
