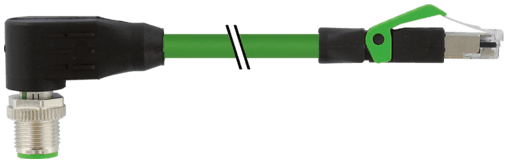

7000-44761-7944600 Murr Elektronik Cable Assemblies

Product Details

• Weight
  3519 g
• Series
  Connector Systems
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Operating current per contact
  max. 1.5 A (20 °C)
• Compression gland
  M12 (SW13)
• Resistor (core)
  max. 55 Ω/km (20 °C)
• Temperature range (fixed)
  -40...+80 °C
• Material (wire)
  Cu wire, bare
• Material group
  IEC 60664-1, category I
• Shield
  yes
• Diameter (core)
  1× 4× AWG22/7
• Operating voltage (only UL listed)
  max. 30 V DC
• Form
  44761
• Approval (cable)
  cURus (AWM-Style 20549/10578), CE-conform
• Bend radius (fixed)
  6× outer Ø
• Outer-Ø (jacket)
  6.7 mm ±5%
• Operating voltage
  max. 60 V DC
• Cable identification
  794
• chemical resistance
  Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std.
• optical shield cover
  min. 85%
Rated surge voltage
1.0 kV
Standards
DIN EN 61076-2-101 (M12)
Wire-Ø incl. isolation
1.55 mm ±5%
Temperature range (mobile)
-30...+70 °C
Color/numbering of wires
wh, ye, bl, or
Coding
M12, D-coded
Temperature range
-25...+85 °C, depending on cable quality
Construction (core)
7× 0.254 mm
Bend radius (moving)
12× outer Ø
Protection
IP67 (M12) - IP20 (RJ45)
Shield (Type)
Copper braid
thermal resistance
flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
Cable weight [g/m]
75,87 g
Transfer rate
up to 100 Mbit/s full duplex
suitable for corrugated tube (internal Ø)
without
Material (wire isolation)
PE
Nominal voltage
300 V
Material (jacket)
PUR
Material
PUR
Locking material
Zinc die casting, matte nickel plated
Cable length
46 m
Transfer parameters
CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Pollution Degree
3
AWG
similar to AWG 22
Color (jacket)
green
Product article number of manufacturer
7000-44761-7944600
