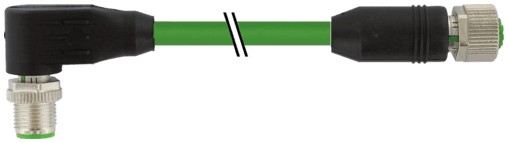

7000-44581-7940150 Murr Elektronik Cable Assemblies

Product Details

• Weight
  130 g
• Series
  Connector Systems
• Material
  PUR
• Resistor (core)
  max. 55 Ω/km (20 °C)
• Outer-Ø (jacket)
  6.7 mm ±5%
• Bend radius (moving)
  12× outer Ø
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Approval (cable)
  cURus (AWM-Style 20549/10578), CE-conform
• Shield
  yes
• Temperature range (mobile)
  -30...+70 °C
• Rated surge voltage
  1.5 kV
• Pollution Degree
  3
• Cable weight [g/m]
  75,87 g
• Material (jacket)
  PUR
• Cable length
  1,5 m
• Operating current per contact
  max. 4 A
• Cable identification
  794
• Material (wire isolation)
  PE
• Temperature range (fixed)
  -40...+80 °C
• Operating voltage
  max. 60 V DC
Standards
DIN EN 61076-2-101 (M12)
Color/numbering of wires
wh, ye, bl, or
Nominal voltage
300 V
Operating voltage (only UL listed)
max. 30 V DC
Temperature range
-25...+85 °C, depending on cable quality
Construction (core)
7× 0.254 mm
thermal resistance
flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
Material group
IEC 60664-1, category I
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Material (wire)
Cu wire, bare
Shield (Type)
Copper braid
Product article number of manufacturer
7000-44581-7940150
Transfer parameters
CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Form
44581
suitable for corrugated tube (internal ��)
without
AWG
similar to AWG 22
chemical resistance
Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std.
Coding
M12, D-coded
Compression gland
M12 (SW13)
Diameter (core)
1× 4× AWG22/7
Color (jacket)
green
Transfer rate
up to 100 Mbit/s full duplex
Locking material
Zinc die casting, matte nickel plated
Wire-Ø incl. isolation
1.55 mm ±5%
optical shield cover
min. 85%
Bend radius (fixed)
6× outer Ø
