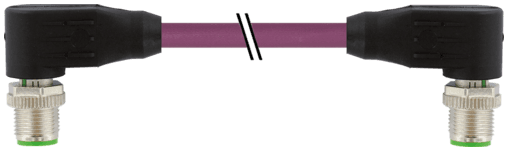

7000-44561-7980750 Murr Elektronik Cable Assemblies

Product Details

• Weight
  509 g
• Series
  Connector Systems
• Transfer rate
  up to 100 Mbit/s full duplex
• Transfer parameters
  CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
• Standards
  DIN EN 61076-2-101 (M12)
• Diameter (core)
  1× 4× AWG22/7
• Shield
  yes
• Test voltage
  2000 V AC (test duration 1 min)
• Torsion stress
  ±180°/m
• LED display
  no
• Temperature range
  -25...+85 °C, depending on cable quality
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• Material (jacket)
  PUR
• Nominal voltage
  300 V
• Product article number of manufacturer
  7000-44561-7980750
• Operating current per contact
  max. 4 A
• Locking material
  Zinc die casting, matte nickel plated
• Cable weight [g/m]
  68,64 g
• Wire-Ø incl. isolation
  1.4 mm ±5%
• Outer-Ø (jacket)
  6.7 mm ±5%
Bend radius (moving)
12× outer Ø
Mounting method
inserted, tightened
Approval (cable)
cURus (AWM-Style 20549/11602), CE-conform
optical shield cover
min. 85%
Temperature range (fixed)
-40...+80 °C
Cable length
7,5 m
Operating voltage (only UL listed)
30 V DC
suitable for corrugated tube (internal Ø)
without
Material (wire isolation)
PO
thermal resistance
flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
Travel speed (C-track)
max. 3.3 m/s
Operating voltage
max. 60 V DC
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Material (wire)
Cu wire, bare
Shield (Type)
Copper braid
Temperature range (mobile)
-30...+70 °C
No. of torsion cycles
max. 1 Mio. (25 °C)
Rated surge voltage
1.5 kV
Material
PUR
AWG
similar to AWG 22
Color (jacket)
violet
Traversing distance (C-track)
max. 5 m (horizontal)
Form
44561
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Cable identification
798
Color/numbering of wires
wh, ye, bl, or
Shore hardness (jacket)
85 ±5 A
Bend radius (fixed)
5× outer Ø
No. of poles
4
Coding
D-coded
Pollution Degree
3
Resistor (core)
max. 55 Ω/km (20 °C)
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant
No. of bending cycles (C-track)
max. 3 Mio. (25 °C)
Material group
IEC 60664-1, category I
Compression gland
M12 (SW13)
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
chemical resistance
Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std.
Acceleration (C-track)
max. 2 m/s²
