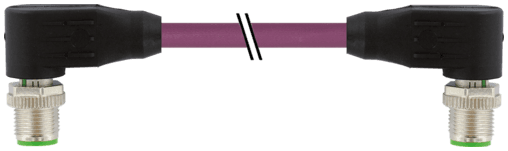

7000-44561-7980400 Murr Elektronik Cable Assemblies

Product Details

• Weight
  311 g
• Series
  Connector Systems
• Coding
  D-coded
• Pollution Degree
  3
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• chemical resistance
  Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std.
• Torsion stress
  ±180°/m
• Operating voltage
  max. 60 V DC
• Compression gland
  M12 (SW13)
• Material (wire)
  Cu wire, bare
• AWG
  similar to AWG 22
• Shore hardness (jacket)
  85 ±5 A
• Acceleration (C-track)
  max. 2 m/s²
• No. of poles
  4
• suitable for corrugated tube (internal Ø)
  without
• Resistor (core)
  max. 55 Ω/km (20 °C)
• Shield (Type)
  Copper braid
• Temperature range (mobile)
  -30...+70 °C
• Material group
  IEC 60664-1, category I
• Protection
  IP65, IP66K, IP67 inserted and tightened (EN 60529)
Cable identification
798
Color/numbering of wires
wh, ye, bl, or
thermal resistance
flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
No. of torsion cycles
max. 1 Mio. (25 °C)
Form
44561
Temperature range
-25...+85 °C, depending on cable quality
Shield
yes
Nominal voltage
300 V
Cable length
4 m
Operating voltage (only UL listed)
30 V DC
Standards
DIN EN 61076-2-101 (M12)
Cable weight [g/m]
68,64 g
optical shield cover
min. 85%
Test voltage
2000 V AC (test duration 1 min)
Travel speed (C-track)
max. 3.3 m/s
Transfer parameters
CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
Material
PUR
Mounting method
inserted, tightened
Wire-Ø incl. isolation
1.4 mm ±5%
Outer-Ø (jacket)
6.7 mm ±5%
No. of bending cycles (C-track)
max. 3 Mio. (25 °C)
Product article number of manufacturer
7000-44561-7980400
Operating current per contact
max. 4 A
Locking material
Zinc die casting, matte nickel plated
Diameter (core)
1× 4× AWG22/7
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant
Bend radius (fixed)
5× outer Ø
Rated surge voltage
1.5 kV
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Construction (core)
19× 0.15 mm (multi-strand wire class 5)
Material (jacket)
PUR
Temperature range (fixed)
-40...+80 °C
Traversing distance (C-track)
max. 5 m (horizontal)
Transfer rate
up to 100 Mbit/s full duplex
LED display
no
Approval (cable)
cURus (AWM-Style 20549/11602), CE-conform
Material (wire isolation)
PO
Color (jacket)
violet
Bend radius (moving)
12× outer Ø
