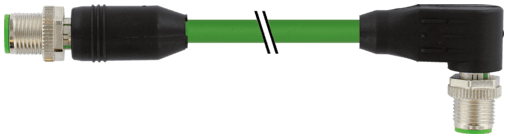

7000-44541-7940030 Murr Elektronik Cable Assemblies

Product Details

• Weight
  52 g
• Series
  Connector Systems
• Coding
  M12, D-coded
• Form
  44541
• Pollution Degree
  3
• Diameter (core)
  1× 4× AWG22/7
• Material (jacket)
  PUR
• Bend radius (moving)
  12× outer Ø
• Operating current per contact
  max. 1.5 A
• Material
  PUR
• AWG
  similar to AWG 22
• Temperature range (fixed)
  -40...+80 °C
• Transfer parameters
  CAT5, Class D (ISO/IEC 11801:2002), (EN 50173-1)
• Approval (cable)
  cURus (AWM-Style 20549/10578), CE-conform
• Material (wire)
  Cu wire, bare
• Wire-Ø incl. isolation
  1.55 mm ±5%
• Temperature range (mobile)
  -30...+70 °C
• Operating voltage
  max. 60 V DC
• Temperature range
  -25...+85 °C, depending on cable quality
• suitable for corrugated tube (internal Ø)
  without
Construction (core)
7× 0.254 mm
Nominal voltage
300 V
Material group
IEC 60664-1, category I
Protection
IP65, IP66K, IP67 inserted and tightened (EN 60529)
Color/numbering of wires
wh, ye, bl, or
chemical resistance
Oil resistance according to IEC 60811-2-1, ASTM IRM 901, ICEA S-82-552 Std.
Rated surge voltage
1.5 kV
Compression gland
M12 (SW13)
Shield
yes
Cable length
0,3 m
Transfer rate
up to 100 Mbit/s full duplex
Cable weight [g/m]
75,87 g
Shield (Type)
Copper braid
Color (jacket)
green
Locking of ports
Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
Cable identification
794
optical shield cover
min. 85%
Bend radius (fixed)
6× outer Ø
Locking material
Zinc die casting, matte nickel plated
Material (wire isolation)
PE
thermal resistance
flame-retardant according to UL 1581 section 1090, section 1100 (FT2), IEC 60332-1-2 Std.
Standards
DIN EN 61076-2-101 (M12)
Resistor (core)
max. 55 Ω/km (20 °C)
Outer-Ø (jacket)
6.7 mm ±5%
Product article number of manufacturer
7000-44541-7940030
