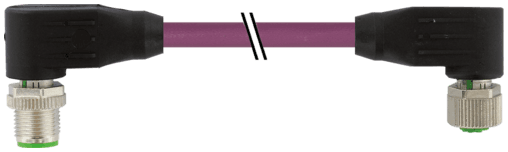

7000-44021-8501000 Murr Elektronik Cable Assemblies

Product Details

• Weight
  691 g
• Series
  Connector Systems
• Rated surge voltage
  1.5 kV
• Temperature range
  -25...+85 °C, depending on cable quality
• Cable weight [g/m]
  75,9 g
• Material (jacket)
  PVC
• Locking of ports
  Screw thread (M12×1 mm) recommended torque 0.6 Nm, self-securing
• Form
  44021
• Coding
  B-coded
• Single wire Ø (core)
  0.13 mm
• AWG
  similar to AWG 24
• Outer-Ø (jacket)
  7.8 mm ±5%
• Acceleration (C-track)
  max. 5 m/s²
• Protection
  IP65, IP66K, IP67 inserted and tightened (EN 60529)
• Material (contact)
  Copper alloy
• Wire isolation
  PE (rd, gn)
• Color/numbering of wires
  rd, gn
• Test voltage
  1.5 kV
• Material
  PUR
• Material (contact surface)
  Au
Material group
IEC 60664-1, category I
Construction (core)
19× 0.13 mm
Nominal voltage
30 V AC
Locking material
Zinc die casting, matte nickel plated
Material (gasket)
FKM
Material (wire)
Cu wire, bare
optical shield cover
min. 70%
Bend radius (moving)
12× outer Ø
suitable for corrugated tube (internal Ø)
without
Pollution Degree
3
C-track properties
2 Mio.
Diameter (core)
1× 2× 0.25 mm²
Shield (Type)
Copper braid
Temperature range (fixed)
-25...+70 °C
Cable length
10 m
Travel speed (C-track)
max. 3 m/s
Operating voltage
max. 60 V AC/DC
Operating current per contact
max. 4 A
LED display
no
Color (jacket)
violet
No. of bending cycles (C-track)
max. 2 Mio. (25 °C)
Compression gland
M12 (SW13)
No. of poles
M12, 4-pole – M12, 2-pole
Cable identification
850
Shield
yes
Bend radius (fixed)
7.5× outer Ø
Standards
DIN EN 61076-2-101 (M12)
Operating voltage (only UL listed)
30 V AC/DC
Outer Ø
7.8 mm ±5%
Wire-Ø incl. isolation
2.55 mm ±5%
Temperature range (mobile)
-20...+50 °C
Mounting method
inserted, tightened
No./diameter of wires
1× 2× 0.25 mm²
Resistor (core)
max. 68 Ω/km (20 °C)
Material (wire isolation)
PE
Jacket Color
violet
Product article number of manufacturer
7000-44021-8501000
