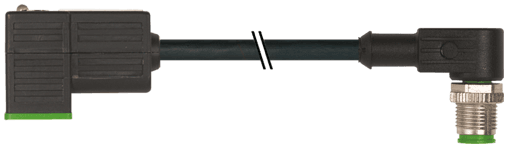

7000-41101-6560060 Murr Elektronik Cable Assemblies

Product Details

• Weight
  61 g
• Series
  Connector Systems
• Protection
  IP67 inserted and tightened (EN 60529)
• Cable weight [g/m]
  48,4 g
• Stranding combination
  3 wires twisted
• Test voltage
  2500 V AC
• Torsion stress
  ±360°/m
• Form
  41101
• Temperature range
  -25...+85 °C, depending on cable quality
• Material (wire isolation)
  PP
• Nominal voltage
  300 V AC
• Bend radius (fixed)
  5× outer Ø
• Current consumption
  approx. 12 mA
• Housing
  Black plastic (gray on request)
• Material (wire)
  Cu wire, bare
• Shore hardness (wire isolation)
  58 ±3 D
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Travel speed (C-track)
  max. 3.3 m/s
• Operating voltage
  24 V AC ±20% / DC ±25%
• Cable identification
  656
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Color (jacket)
black
Product article number of manufacturer
7000-41101-6560060
Operating current per contact
max. 4 A
Compression gland
M12 (SW13)
Resistor (core)
max. 26 Ω/km (20 °C)
Diameter (core)
3× 0.75 mm²
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
No. of torsion cycles
max. 1 Mio. (25 °C)
Rated surge voltage
0.8 kV
suitable for corrugated tube (internal Ø)
10 mm
Pollution Degree
3
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
thermal resistance
flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
Bend radius (moving)
10× outer Ø
Switch off peak
max. 55 V
Switch off delay time
max. 20 ms
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Material (jacket)
PUR
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Cable length
0,6 m
LED display
yellow
Cable Type
5 (PUR schweißfunkenbeständig)
Single wire Ø (core)
0.15 mm
Outer-Ø (jacket)
5.2 mm ±5%
Torsion speed
35 cycles/min
Locking of ports
M2.5/M12 (recommended torque 0.4/0.6 Nm)
Material
MSUD (PBT); M12 (PUR)
Wire-Ø incl. isolation
1.7 mm ±5%
Shore hardness (jacket)
58 ±3 D
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Material group
IEC 60664-1, category I
Locking material
Zinc die casting, matte nickel plated
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
AWG
similar to AWG 18
Shield
no
Current load capacity
to DIN VDE 0298-4
Acceleration (C-track)
max. 5 m/s²
