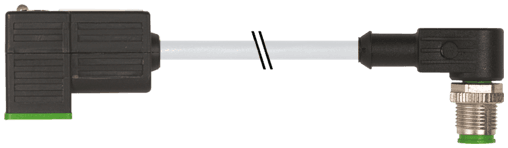

7000-41101-2360030 Murr Elektronik Cable Assemblies

Product Details

• Weight
  46 g
• Series
  Connector Systems
• Material group
  IEC 60664-1, category I
• suitable for corrugated tube (internal Ø)
  10 mm
• Cable Type
  3 (PUR)
• Material (jacket)
  PUR
• Current load capacity
  to DIN VDE 0298-4
• Cable length
  0,3 m
• Locking of ports
  M2.5/M12 (recommended torque 0.4/0.6 Nm)
• Compression gland
  M12 (SW13)
• Cable identification
  236
• Stranding combination
  3 wires twisted
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• Temperature range (mobile)
  -25...+80 °C, (+90 °C at max. 10 000 operating hours)
• Protection
  IP67 inserted and tightened (EN 60529)
• Material (wire)
  Cu wire, bare
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
• Bend radius (fixed)
  5× outer Ø
• Switch off peak
  max. 55 V
• Cable weight [g/m]
  56,1 g
Material (wire isolation)
PP
Shore hardness (jacket)
90 ±5 A
Travel speed (C-track)
max. 3 m/s
Torsion speed
35 cycles/min
LED display
yellow
Temperature range
-25...+85 °C, depending on cable quality
Diameter (core)
3× 0.75 mm²
Color/numbering of wires
bk numbered, gnye longitudinally striped
Color (jacket)
gray
Acceleration (C-track)
max. 10 m/s²
Form
41101
Pollution Degree
3
Single wire Ø (core)
0.15 mm
Nominal voltage
300 V AC
Torsion stress
±180°/m
Current consumption
approx. 12 mA
Locking material
Zinc die casting, matte nickel plated
AWG
similar to AWG 18
Shield
no
Bend radius (moving)
10× outer Ø
Product article number of manufacturer
7000-41101-2360030
Rated surge voltage
0.8 kV
Housing
Black plastic (gray on request)
Resistor (core)
max. 26 Ω/km (20 °C)
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
No. of torsion cycles
max. 2 Mio. (25 °C)
Operating voltage
24 V AC ±20% / DC ±25%
Material
MSUD (PBT); M12 (PUR)
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Shore hardness (wire isolation)
70 ±5 D
Outer-Ø (jacket)
5.9 mm ±5%
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Operating current per contact
max. 4 A
Switch off delay time
max. 20 ms
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Wire-Ø incl. isolation
1.85 mm ±5%
Test voltage
2500 V AC
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
