7000-41081-2560100 Murr Elektronik Cable Assemblies
Part#:7000-41081-2560100
Alt. Part#:7000-41081-0560100
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

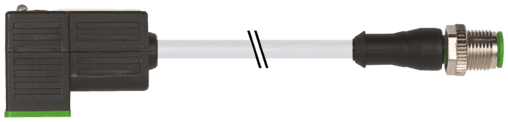

7000-41081-2560100 Murrelektronik - M12 MALE 0° / MSUD VALVE PLUG FORM C 8 MM, PUR 3X0.75 GRAY, ROBOT, drag ch 1m
Product Details
- Weight 78 g
- Series Connector Systems
- Switch off delay time max. 20 ms
- Temperature range -25...+85 °C, depending on cable quality
- Stranding combination 3 wires twisted
- Current load capacity to DIN VDE 0298-4
- Torsion stress ±360°/m
- Switch off peak max. 55 V
- Construction (core) 42× 0.15 mm (multi-strand wire class 6)
- Material (jacket) PUR
- Acceleration (C-track) max. 5 m/s²
- Locking of ports M2.5/M12 (recommended torque 0.4/0.6 Nm)
- Approval (cable) cURus (AWM-Style 20549/10493); CE conform
- Color/numbering of wires bk numbered, gnye longitudinally striped
- Shore hardness (jacket) 58 ±3 D
- thermal resistance flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
- No. of bending cycles (C-track) max. 10 Mio. (25 °C)
- Torsion speed 35 cycles/min
- Protection IP67 inserted and tightened (EN 60529)
- Cable Type 5 (PUR schweißfunkenbeständig)
- Shield no
- Temperature range (mobile) -25...+80 °C, (+90 °C at max. 10 000 operating hours)
- Operating current per contact max. 4 A
- Single wire Ø (core) 0.15 mm
- Shore hardness (wire isolation) 74 ±3 D
- Form 41081
- Cable weight [g/m] 48,4 g
- Diameter (core) 3× 0.75 mm²
- Material (wire isolation) PP
- Outer-Ø (jacket) 5.2 mm ±5%
- Test voltage 2500 V AC
- Bend radius (fixed) 5× outer Ø
- Cable length 1 m
- Housing Black plastic (gray on request)
- Material (wire) Cu wire, bare
- Wire-Ø incl. isolation 1.7 mm ±5%
- chemical resistance good resistance to oil, gasoline and chemicals (EN 60811-404)
- Travel speed (C-track) max. 3.3 m/s
- Operating voltage 24 V AC ±20% / DC ±25%
- Cable identification 256
- AWG similar to AWG 18
- Nominal voltage 300 V AC
- Bend radius (moving) 10× outer Ø
- Rated surge voltage 0.8 kV
- Resistor (core) max. 26 Ω/km (20 °C)
- Material property (wire isolation) CFC-, halogen-, cadmium-, silicone- and lead-free
- Color (jacket) gray
- Temperature range (fixed) -40...+80 °C, (+90 °C at max. 10 000 operating hours)
- No. of torsion cycles max. 1 Mio. (25 °C)
- Product article number of manufacturer 7000-41081-2560100
- Locking material Zinc die casting, matte nickel plated
- Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
