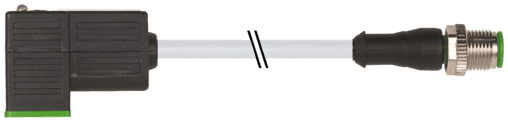

7000-41081-2360300 Murr Elektronik Cable Assemblies

Product Details

• Weight
  179 g
• Series
  Connector Systems
• Housing
  Black plastic (gray on request)
• Construction (core)
  42× 0.15 mm (multi-strand wire class 6)
• Shore hardness (jacket)
  90 ±5 A
• Acceleration (C-track)
  max. 10 m/s²
• Protection
  IP67 inserted and tightened (EN 60529)
• Temperature range
  -25...+85 °C, depending on cable quality
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Locking of ports
  M2.5/M12 (recommended torque 0.4/0.6 Nm)
• Locking material
  Zinc die casting, matte nickel plated
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Material (jacket)
  PUR
• Current load capacity
  to DIN VDE 0298-4
• Form
  41081
• Diameter (core)
  3× 0.75 mm²
• Wire-Ø incl. isolation
  1.85 mm ±5%
• chemical resistance
  good resistance to oil, gasoline and chemicals (EN 60811-404)
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• Torsion speed
  35 cycles/min
Switch off delay time
max. 20 ms
Material (wire)
Cu wire, bare
Shield
no
Nominal voltage
300 V AC
No. of torsion cycles
max. 2 Mio. (25 °C)
Operating voltage
24 V AC ±20% / DC ±25%
AWG
similar to AWG 18
Outer-Ø (jacket)
5.9 mm ±5%
Bend radius (moving)
10× outer Ø
Cable Type
3 (PUR)
Stranding combination
3 wires twisted
Cable length
3 m
Operating current per contact
max. 4 A
Single wire Ø (core)
0.15 mm
Color/numbering of wires
bk numbered, gnye longitudinally striped
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Bend radius (fixed)
5× outer Ø
Product article number of manufacturer
7000-41081-2360300
Switch off peak
max. 55 V
Cable identification
236
Cable weight [g/m]
56,1 g
Shore hardness (wire isolation)
70 ±5 D
Color (jacket)
gray
Test voltage
2500 V AC
Travel speed (C-track)
max. 3 m/s
Material property (wire isolation)
CFC-, halogen-, cadmium-, silicone- and lead-free
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Torsion stress
±180°/m
Rated surge voltage
0.8 kV
Material (wire isolation)
PP
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
