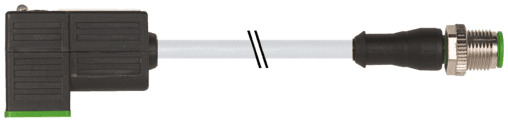

7000-41081-2160030 Murr Elektronik Cable Assemblies

Product Details

• Weight
  50 g
• Series
  Connector Systems
• Form
  41081
• Cable identification
  216
• Single wire Ø (core)
  0.2 mm
• Shore hardness (jacket)
  80 ±5 A
• Temperature range (fixed)
  -30...+70 °C
• Operating voltage
  24 V AC ±20% / DC ±25%
• Cable Type
  1 (PVC)
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Color (jacket)
  gray
• Product article number of manufacturer
  7000-41081-2160030
• Locking material
  Zinc die casting, matte nickel plated
• Approval (cable)
  CE conform
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Locking of ports
  M2.5/M12 (recommended torque 0.4/0.6 Nm)
• Temperature range
  -25...+85 °C, depending on cable quality
• Material (wire isolation)
  PVC
• Material property (jacket)
  CFC-, cadmium-, silicone- and lead-free
Bend radius (moving)
10× outer Ø
Operating current per contact
max. 4 A
Cable weight [g/m]
63,8 g
Wire-Ø incl. isolation
1.8 mm ±5%
Test voltage
3000 V AC
Rated surge voltage
0.8 kV
Resistor (core)
max. 26 Ω/km (20 °C)
Color/numbering of wires
bk numbered, gnye longitudinally striped
Current load capacity
to DIN VDE 0298-4
Protection
IP67 inserted and tightened (EN 60529)
Diameter (core)
3× 0.75 mm²
Material (jacket)
PVC
Temperature range (mobile)
-5...+70 °C
Switch off delay time
max. 20 ms
AWG
similar to AWG 18
Outer-Ø (jacket)
5.9 mm ±5%
Bend radius (fixed)
5× outer Ø
Switch off peak
max. 55 V
Material (wire)
Cu wire, bare
Stranding combination
3 wires twisted
Nominal voltage
300/500 V AC
Housing
Black plastic (gray on request)
Shore hardness (wire isolation)
43 ±5 D
Shield
no
Cable length
0,3 m
