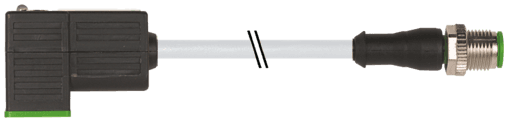

7000-41041-2160500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  316 g
• Series
  Connector Systems
• Switch off delay time
  max. 20 ms
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Rated surge voltage
  0.8 kV
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Wire-Ø incl. isolation
  1.8 mm ±5%
• Test voltage
  3000 V AC
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Single wire Ø (core)
  0.2 mm
• Shore hardness (wire isolation)
  43 ±5 D
• Color (jacket)
  gray
• Cable length
  5 m
• Protection
  IP67 inserted and tightened (EN 60529)
• Material (wire isolation)
  PVC
• Stranding combination
  3 wires twisted
• Current load capacity
  to DIN VDE 0298-4
• Temperature range
  -25...+85 °C, depending on cable quality
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
5.9 mm ±5%
Product article number of manufacturer
7000-41041-2160500
Housing
Black plastic (gray on request)
AWG
similar to AWG 18
Material (jacket)
PVC
Temperature range (fixed)
-30...+70 °C
Switch off peak
max. 55 V
Cable Type
1 (PVC)
Approval (cable)
CE conform
Shield
no
Temperature range (mobile)
-5...+70 °C
Operating current per contact
max. 4 A
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Nominal voltage
300/500 V AC
Operating voltage
24 V AC ±20% / DC ±25%
Cable identification
216
Material (wire)
Cu wire, bare
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Bend radius (fixed)
5× outer Ø
Form
41041
Cable weight [g/m]
63,8 g
Diameter (core)
3× 0.75 mm²
Shore hardness (jacket)
80 ±5 A
Bend radius (moving)
10× outer Ø
