7000-41021-6260030 Murr Elektronik Cable Assemblies
Part#:7000-41021-6260030
Manufacturer:Murr Elektronik
Category:Cable Assemblies
Product Lifecycle:Active
Product description

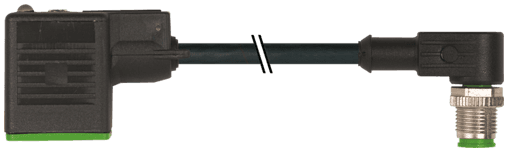

7000-41021-6260030 Murrelektronik - M12 MALE 90° / MSUD VALVE PLUG FORM B 10 MM, PUR 3X0.75 black 0.3m
Product Details
- Weight 62 g
- Series Connector Systems
- Rated surge voltage 0.8 kV
- Cable Type 2 (PUR/PVC)
- Construction (core) 42× 0.15 mm (multi-strand wire class 6)
- Material (jacket) PUR/PVC
- Bend radius (fixed) 10× outer Ø
- Operating current per contact max. 4 A
- Material (wire) Cu wire, bare
- Material property (jacket) CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
- Color (jacket) black
- Product article number of manufacturer 7000-41021-6260030
- Protection IP66K, IP67 inserted and tightened (EN 60529)
- Form 41021
- Cable weight [g/m] 55,33 g
- Diameter (core) 3× 0.75 mm²
- Outer-Ø (jacket) 5.9 mm ±5%
- No. of bending cycles (C-track) max. 2 Mio. (25 °C)
- Current consumption approx. 12 mA
- Single wire Ø (core) 0.15 mm
- Shield no
- Nominal voltage UL 300 V AC
- LED display (yellow)
- Housing Black plastic (gray on request)
- Color/numbering of wires bk numbered, gnye longitudinally striped
- Current load capacity to DIN VDE 0298-4
- Travel speed (C-track) max. 3.3 m/s
- Operating voltage 24 V AC ±20% / DC ±25%
- Approval (cable) UL (AWM-Style 20549/1731), CSA; CE conform
- Stranding combination 3 wires twisted
- Temperature range (mobile) -5...+80 °C
- Locking of ports M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
- Material (wire isolation) PVC
- Shore hardness (wire isolation) 43 ±5 D
- Temperature range (fixed) -30...+80 °C
- Switch off peak max. 55 V
- Switch off delay time max. 20 ms
- Material property (wire isolation) CFC-, cadmium-, silicone- and lead-free
- chemical resistance good resistance to oil, gasoline and chemicals
- Cable length 0,3 m
- Cable identification 626
- AWG similar to AWG 18
- Shore hardness (jacket) 80 ±5 A (PVC-under jacket); 85 ±5 A (PUR-jacket)
- Bend radius (moving) 15× outer Ø
- Temperature range -25...+85 °C, depending on cable quality
- Resistor (core) max. 26 Ω/km (20 °C)
- Wire-Ø incl. isolation 1.8 mm ±5%
- Test voltage 2000 V AC
- Acceleration (C-track) max. 5 m/s²
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
