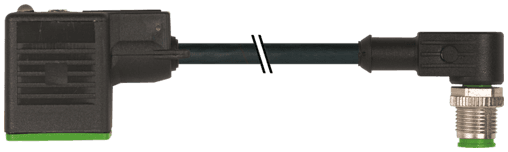

7000-41021-6160500 Murr Elektronik Cable Assemblies

Product Details

• Weight
  331 g
• Series
  Connector Systems
• Protection
  IP66K, IP67 inserted and tightened (EN 60529)
• Cable Type
  1 (PVC)
• Stranding combination
  3 wires twisted
• Current load capacity
  to DIN VDE 0298-4
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Cable weight [g/m]
  61,6 g
• Shore hardness (wire isolation)
  43 ±5 D
• Test voltage
  3000 V AC
• Operating current per contact
  max. 4 A
• Material (wire)
  Cu wire, bare
• Housing
  Black plastic (gray on request)
• Color (jacket)
  black
• Bend radius (moving)
  10× outer Ø
• Switch off peak
  max. 55 V
• Cable identification
  616
• Material property (wire isolation)
  CFC-, cadmium-, silicone- and lead-free
• Outer-Ø (jacket)
  5.9 mm ±5%
• Temperature range (fixed)
  -30...+70 °C
LED display
(yellow)
Switch off delay time
max. 20 ms
Color/numbering of wires
bk numbered, gnye longitudinally striped
Nominal voltage
300/500 V AC
Form
41021
Temperature range
-25...+85 °C, depending on cable quality
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
Shore hardness (jacket)
80 ±5 A
Operating voltage
24 V AC ±20% / DC ±25%
Resistor (core)
max. 26 Ω/km (20 °C)
Wire-Ø incl. isolation
1.8 mm ±5%
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Cable length
5 m
Material (wire isolation)
PVC
chemical resistance
good resistance to oil, gasoline and chemicals
Product article number of manufacturer
7000-41021-6160500
Rated surge voltage
0.8 kV
Single wire Ø (core)
0.2 mm
Diameter (core)
3× 0.75 mm²
Shield
no
Bend radius (fixed)
5× outer Ø
Current consumption
approx. 12 mA
Approval (cable)
CE conform
AWG
similar to AWG 18
Material (jacket)
PVC
Temperature range (mobile)
-5...+70 °C
