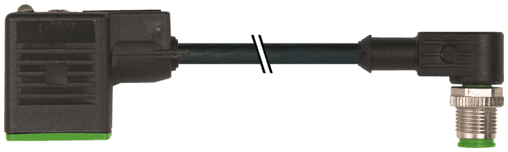

7000-41021-6160200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  160 g
• Series
  Connector Systems
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Cable identification
  616
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Material (jacket)
  PVC
• Bend radius (fixed)
  5× outer Ø
• Current consumption
  approx. 12 mA
• Switch off delay time
  max. 20 ms
• Single wire Ø (core)
  0.2 mm
• Stranding combination
  3 wires twisted
• Test voltage
  3000 V AC
• Housing
  Black plastic (gray on request)
• Temperature range
  -25...+85 °C, depending on cable quality
• Wire-Ø incl. isolation
  1.8 mm ±5%
• Shore hardness (jacket)
  80 ±5 A
• Product article number of manufacturer
  7000-41021-6160200
• Switch off peak
  max. 55 V
• Approval (cable)
  CE conform
• Shield
  no
Temperature range (fixed)
-30...+70 °C
Rated surge voltage
0.8 kV
Diameter (core)
3× 0.75 mm²
Outer-Ø (jacket)
5.9 mm ±5%
Bend radius (moving)
10× outer Ø
Operating current per contact
max. 4 A
Cable Type
1 (PVC)
Material (wire isolation)
PVC
chemical resistance
good resistance to oil, gasoline and chemicals
Cable length
2 m
LED display
(yellow)
Cable weight [g/m]
61,6 g
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Color (jacket)
black
Protection
IP66K, IP67 inserted and tightened (EN 60529)
Material (wire)
Cu wire, bare
Shore hardness (wire isolation)
43 ±5 D
Current load capacity
to DIN VDE 0298-4
Operating voltage
24 V AC ±20% / DC ±25%
Resistor (core)
max. 26 Ω/km (20 °C)
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Temperature range (mobile)
-5...+70 °C
Form
41021
Construction (core)
24× 0.2 mm (multi-strand wire class 5)
AWG
similar to AWG 18
Nominal voltage
300/500 V AC
