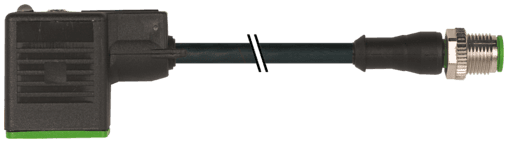

7000-41001-6160100 Murr Elektronik Cable Assemblies

Product Details

• Weight
  74 g
• Series
  Connector Systems
• Housing
  Black plastic (gray on request)
• Single wire Ø (core)
  0.2 mm
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Product article number of manufacturer
  7000-41001-6160100
• Operating current per contact
  max. 4 A
• Material (wire)
  Cu wire, bare
• Shore hardness (wire isolation)
  43 ±5 D
• Material (jacket)
  PVC
• Rated surge voltage
  0.8 kV
• AWG
  similar to AWG 18
• Nominal voltage
  300/500 V AC
• Cable length
  1 m
• Locking of ports
  M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
• Construction (core)
  24× 0.2 mm (multi-strand wire class 5)
• Stranding combination
  3 wires twisted
• chemical resistance
  good resistance to oil, gasoline and chemicals
• Operating voltage
  24 V AC ±20% / DC ±25%
• Resistor (core)
  max. 26 Ω/km (20 °C)
Approval (cable)
CE conform
Material property (jacket)
CFC-, cadmium-, silicone- and lead-free
Bend radius (fixed)
5× outer Ø
Switch off peak
max. 55 V
Cable weight [g/m]
61,6 g
Material (wire isolation)
PVC
Color (jacket)
black
Bend radius (moving)
10× outer Ø
Temperature range
-25...+85 °C, depending on cable quality
Shore hardness (jacket)
80 ±5 A
Test voltage
3000 V AC
Form
41001
Cable identification
616
Wire-Ø incl. isolation
1.8 mm ±5%
Temperature range (mobile)
-5...+70 °C
Switch off delay time
max. 20 ms
Cable Type
1 (PVC)
Material property (wire isolation)
CFC-, cadmium-, silicone- and lead-free
Outer-Ø (jacket)
5.9 mm ±5%
Temperature range (fixed)
-30...+70 °C
Protection
IP67 inserted and tightened (EN 60529)
Diameter (core)
3× 0.75 mm²
Shield
no
Current load capacity
to DIN VDE 0298-4
