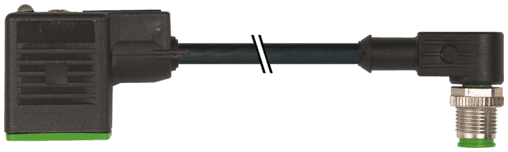

7000-40981-6360150 Murr Elektronik Cable Assemblies

Product Details

• Weight
  123 g
• Series
  Connector Systems
• Housing
  Black plastic (gray on request)
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Stranding combination
  3 wires twisted
• Test voltage
  2500 V AC
• No. of bending cycles (C-track)
  max. 10 Mio. (25 °C)
• LED display
  (yellow)
• Material (wire)
  Cu wire, bare
• AWG
  similar to AWG 18
• Nominal voltage
  300 V AC
• No. of torsion cycles
  max. 2 Mio. (25 °C)
• Rated surge voltage
  0.8 kV
• Approval (cable)
  cURus (AWM-Style 20549/10493); CE conform
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
• Shore hardness (jacket)
  90 ±5 A
• Bend radius (moving)
  10× outer Ø
• Form
  40981
• Temperature range
  -25...+85 °C, depending on cable quality
• Wire-Ø incl. isolation
  1.85 mm ±5%
Material (jacket)
PUR
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Current consumption
approx. 12 mA
Cable weight [g/m]
56,1 g
Material (wire isolation)
PP
Material property (jacket)
CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis and microbial resistant
Bend radius (fixed)
5× outer Ø
Product article number of manufacturer
7000-40981-6360150
Operating current per contact
max. 4 A
Cable Type
3 (PUR)
Shore hardness (wire isolation)
70 ±5 D
Color (jacket)
black
Torsion speed
35 cycles/min
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Protection
IP66K, IP67 inserted and tightened (EN 60529)
Color/numbering of wires
bk numbered, gnye longitudinally striped
thermal resistance
flame retardand UL 1581 Section 1090 (H), CSA FT2 / IEC 60332-2-2
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Switch off delay time
max. 20 ms
Single wire Ø (core)
0.15 mm
Shield
no
Current load capacity
to DIN VDE 0298-4
Travel speed (C-track)
max. 3 m/s
Cable identification
636
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Outer-Ø (jacket)
5.9 mm ±5%
Acceleration (C-track)
max. 10 m/s²
Cable length
1,5 m
Switch off peak
max. 55 V
Operating voltage
24 V AC ±20% / DC ±25%
Diameter (core)
3× 0.75 mm²
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Torsion stress
±180°/m
