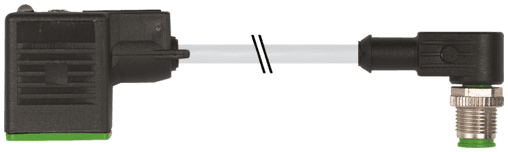

7000-40981-2560200 Murr Elektronik Cable Assemblies

Product Details

• Weight
  148 g
• Series
  Connector Systems
• Operating current per contact
  max. 4 A
• Cable weight [g/m]
  48,4 g
• Shield
  no
• thermal resistance
  flame retardant UL, FT2, IEC 60332-1, IEC 60332-2-2, welding spark resistant
• Travel speed (C-track)
  max. 3.3 m/s
• Form
  40981
• Single wire Ø (core)
  0.15 mm
• Material property (jacket)
  CFC-, halogen-, cadmium-, silicone- and lead-free, matt, low-adhesion, machine easy to process, abrasion-resistant, hydrolysis-, microbial- and welding spark resistant
• Nominal voltage
  300 V AC
• Product article number of manufacturer
  7000-40981-2560200
• Operating voltage
  24 V AC ±20% / DC ±25%
• Resistor (core)
  max. 26 Ω/km (20 °C)
• Color/numbering of wires
  bk numbered, gnye longitudinally striped
• Current load capacity
  to DIN VDE 0298-4
• No. of torsion cycles
  max. 1 Mio. (25 °C)
• Current consumption
  approx. 12 mA
• Cable identification
  256
• Material property (wire isolation)
  CFC-, halogen-, cadmium-, silicone- and lead-free
Temperature range (fixed)
-40...+80 °C, (+90 °C at max. 10 000 operating hours)
Bend radius (moving)
10× outer Ø
Rated surge voltage
0.8 kV
Cable Type
5 (PUR schweißfunkenbeständig)
AWG
similar to AWG 18
Color (jacket)
gray
LED display
(yellow)
Housing
Black plastic (gray on request)
Wire-Ø incl. isolation
1.7 mm ±5%
chemical resistance
good resistance to oil, gasoline and chemicals (EN 60811-404)
Acceleration (C-track)
max. 5 m/s²
Torsion stress
±360°/m
Switch off peak
max. 55 V
Approval (cable)
cURus (AWM-Style 20549/10493); CE conform
Material (wire isolation)
PP
Material (jacket)
PUR
Temperature range (mobile)
-25...+80 °C, (+90 °C at max. 10 000 operating hours)
Cable length
2 m
Switch off delay time
max. 20 ms
Construction (core)
42× 0.15 mm (multi-strand wire class 6)
Outer-Ø (jacket)
5.2 mm ±5%
Bend radius (fixed)
5× outer Ø
Locking of ports
M3/M12×1 mm (recommended torque 0.4/0.6 Nm)
Material (wire)
Cu wire, bare
Shore hardness (wire isolation)
74 ±3 D
Shore hardness (jacket)
58 ±3 D
No. of bending cycles (C-track)
max. 10 Mio. (25 °C)
Protection
IP66K, IP67 inserted and tightened (EN 60529)
Temperature range
-25...+85 °C, depending on cable quality
Diameter (core)
3× 0.75 mm²
Stranding combination
3 wires twisted
Test voltage
2500 V AC
Torsion speed
35 cycles/min
